Zeiss Spectrum CMM 100x70x57cm 7/10/6 RDS-CAA XDT w/Calypso on Windows 10 PC

Watch Video

Video will open in a new window
Using the eBay App? Paste link into a browser window:

[isdntekvideo]

Manufacturer: Zeiss

Model: Spectrum

Condition: Used. This machine is in good cosmetic condition from a few feet away, but if you look closely, you'll see minor blemishes from prior use.  There are scuffs and slight material transfer marks on the granite and a few scratches in the paint.  The pendant has a slightly squished corner.  A few cover screws are not original.

We couldn't figure a way to photograph this machine with covers installed on the stand, with the machine on its shipping pallet; and we can't take it off the pallet, so it is shown without the covers but they are included.

The photos show the exact item(s) the buyer will receive.

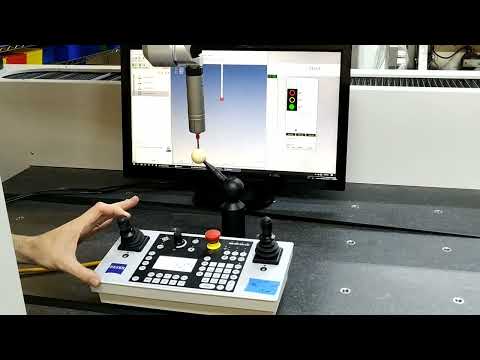

Notes: This CMM is in good working condition as far as we can test.  The pendant works.  The computer boots and loads the Zeiss Calyspo software without errors.  All axes of motion move smoothly and report their positions.  The probe is able to make measurements.  We were able to program a simple Measurement Plan to measure the Reference Sphere at low speed as shown in the video.  When moving faster than that, the machine moved so much from being on a wooden pallet that it gave vibration-related errors (so we couldn't do thorough qualifications).  You will want to set up in a Zeiss-approved manner and perform proper calibration and qualification when you receive this machine!
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) 623544-9005-103 Spectrum CMM
• (1) 620670-9132-000 RDS-C-5-CAA Articulating Probe Holder (with case)
• (1) 620670-8550-000 Adapter Plate (on the Probe Holder)
• (1) 620161-9150-000 XDT-TL3 Probe (with case)
• (1) 5mm dia. x 40mm L Stylus
• (1) 600332-9275-000 Reference Sphere Holder Kit with 30mm sphere (with case)
• (1) 614303-9100-006 HP Z240 Workstation PC
• (1) Calypso license dongle
• (1) C99 Emergency Backup USB drive
• (1) 608426-9152-000 BP26_SE Power On Pendant

Specifications:

• Manufacturer: Carl Zeiss Industrielle Messtechnik GmbHc
• Model: Spectrum II (CMM Spectrum 7/10/6 RDS)
• Coordinate measuring machine
• RDS-CAA articulating wrist joint
• XDT multi-point sensor probe
• Measuring volume: 1000 mm x 700 mm x 570 mm
• Travel speed: up to 200 mm/s CNC controlled, max. 346 mm/s vectors
• Maximum workpiece weight: to 402 kg
• Approximate dimensions: 76" x 56" x 108" (9 feet tall)
• Bridge-type machine, stationary 130 cm granite table, 93 cm wide x 84 cm tall gantry opening (a little less where Z axis hangs down)
• Computer-aided accuracy (CAA)
• Glass-ceramic measuring scales
• Dynamic Drive features automatic drive control
• All axes with wrap-around air bearings
• Passive vibration damping (elastomer pads under table)
• C99L PC-based controller with real-time operating system
• User-adjustable travel speed
• LCD display for coordinates, stylus, etc
• Dual Joystick controls for all axes, variable speed
• Collision protection for styli
• Maintenance-friendly, parts are easily accessible under covers
• Includes Calypso 2018 software on Windows 10 control PC
• Power requirement: 100-240 V, 50-60 Hz, 1 phase, 600 VA maximum
• Manufactured: 2018 November

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
