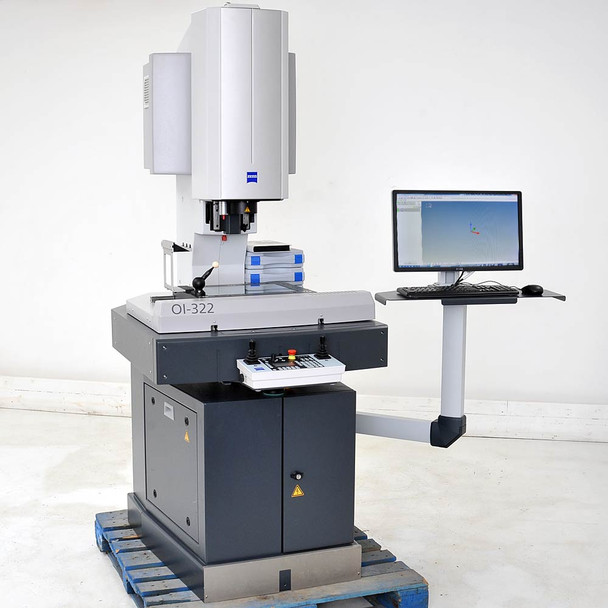

Zeiss O-Inspect 322 CMM Optical/Tactile With VAST XXT Probe, Calypso Software PC

Watch Video

Video will open in a new window
Using the eBay App? Paste link into a browser window:

[isdntekvideo]

Manufacturer: Zeiss

Model: O-Inspect 322

Condition: Used. This system is in good cosmetic condition overall, with some minor blemishes from prior use.  There are some scratches in the paint in a few places, and some scratches on the glass stage surface.  A couple of cover's screws are missing.  Also, on the front of the table where an operator's elbow will often rest, the paint is a little faded.  Otherwise, the machine looks pretty nice.

This system will ship in multiple large crates on freight pallets.
The photos show the exact item(s) the buyer will receive.

Notes: This CMM is in good working condition as far as we can test.  We are not experts in the use of this equipment, but were able to use the included stylus to measure the Reference Sphere, as well as use the optics to define boundaries on the sphere.  All three axes of motion work.  The automatic stylus change works.  The fans are a little loud (healthy-sounding loud), but not loud for a machine shop.

When we got this, it had multiple versions of Calypso installed and none of them were functional.  There are old licenses from versions 5.4 all the way through version 6.6 (which is Calypso 2018) in the License Manager, but only the licenses for 6.6 are listed as active.  We used the included installation USB to install Calypso 2018 and were able to work with the machine.  We found that one of the styli won't identify itself and close the contacts on the XXT probe head, but the other one works fine and we think the stylus tips can be exchanged, so you still have the choice of using either tip.  The top and bottom illuminators and the laser pointer all work.  The pendant works, including the buttons and joysticks, and the display reports both machine and stylus tip position to high precision.  A software installation disc for Calypso 2015 (version 5.4) is included, but we did not try to install that older version.  When Calypso 2018 starts, it gives errors about all the old licenses no longer recognized as valid.  The date was wrong the first time we plugged this in, so the computer's BIOS battery may be old.  No other testing was done.

Please NOTE: If you require any licenses other than those shown as perpetual, you will need to acquire these from Zeiss directly! No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Carl Zeiss O-Inspect 322 CMM
• (1) VAST-XXT-TL1 Probe Head
• (1) Working Stylus (and 1 not working, see note)
• (1) BP26_SE PowerOn Pendant 608426-9152-000
• (1) 636510-9047-000 ShopFloor/Duramax pedestal
• (1) HP Z420 Workstation PC
• (1) RSH-105-A m Holder for Calibration Ball
• (1) 600332-8445-000 25mm Calibration Sphere
• (1) 66768.90 16mm ID Qualifying Ring
• (1) Glass Qualifying Template
• (1) Mount for calibration artifacts
• (1) USB backup for C99 Controller Data
• (1) USB installation media for Calypso 2018
• (1) Optical Disc installation media for Calypso 2015
• (1) Stylus Changer Rack
• (5) Door Keys
• (3) Shipping Brackets (installed)
• (1) Short Manual (Safety Data, 2013 Calibration, brief Operating Instructions, EC Declaration of Conformity)

Specifications:

• Manufacturer: Carl Zeiss
• Model: O-Inspect 322
• Coordinate Measuring Machine
• With optical and tactile stylus probing and measurement capability
• Measuring volume: 300 mm X x 200 mm Y x 200 mm Z
• VAST XXT TL1 tactile probe
• Travel speeds:
  • Creep: 0-5 mm/s
  • Set-up mode: 0-100 mm/s
  • Series measurement mode: X/Y Axis up to 300 mm/s, Z axis up to 100 mm/s
• Approximate dimensions: 160 cm W including keyboard tray (machine width: 87 cm) x 119 cm D, x 211 cm H, 1100 lbs
• Power requirement: 100-240 V AC, 50-60 Hz, 600VA
• Moving-table XY stage, moving-head Z axis
• Stage has fixture-indexing points and threaded mount holes on top
• Standard 12x zoom optical probe with autofocus
• 26SE Pendant/Console with joysticks for each axis, speed adjustment, e-stop, LED display
• Surface and backlight illumination, and positioning laser
• C99L 32-bit control unit (behind IP53 protection covers)
• Changer rack for VAST XXT styli
• Shopfloor base with controller PC inside

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
