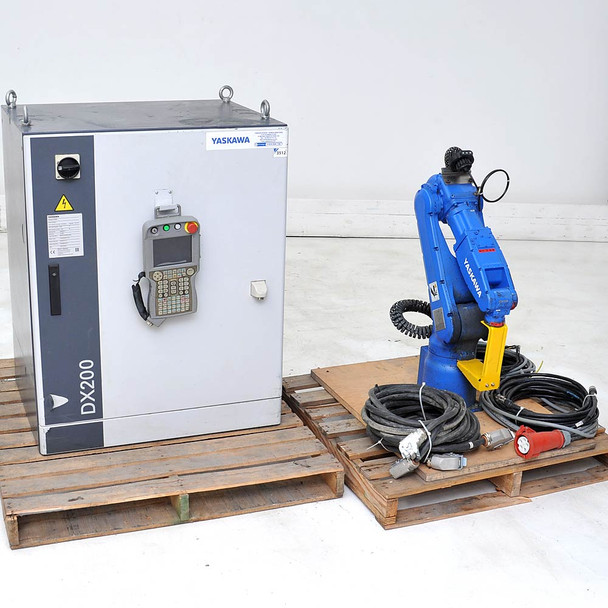

Yaskawa Motoman MH5LSII 6-axis Robot Arm 5kg w/DX200 Controller, Pendant, Cables
- SKU:
- A14D009
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Yaskawa
Model: MH5LSII
Condition: Used. This lot is in fair cosmetic condition with scuffs/scratches and residues from prior use. The prior owner was applying black coatings and significant overspray got on the manipulator. There are also minor blemishes on the controller and residues on the pendant.
The photos show the exact item(s) the buyer will receive.
Notes: This lot was removed from a decommissioned work cell as a set. We verified the controller and pendant power on, and the arm reports its current position. We were not able to get the arm to move due to problems with the rest of the cell. The touch screen on the pendant works. If any keys or passwords are required, we do not have them. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Yaskawa Motoman MH5LSII Manipulator
- (1) Yaskawa DX200 Controller
- (1) Yaskawa JZRCR-YPP21-1 Programming Pendant
- (1) Pendant Cable
- (2) Fat Cables from Controller to Manipulator
- (1) Controller Power Cable
- (1) Controller I/O Cable
- (1) Ground Cable
Specifications:
- Manufacturer: Yaskawa Electric Corporation
- Motoman-MH series Multi-Purpose Robot Arm with Controller
-
Manipulator Model: Motoman-MH5LSII
- Type: YR-MH005LS-J12
- 6-axis robot arm
- Long-reach version, maximum 895mm
- Payload: 5 kg
- Repeatability: +/-0.03mm
-
Axis range of motion, maximum speed:
- S (turning): +/-170º, 270º/s
- L (lower arm): -65~+150º, 280º/s
- U (upper arm): -135~+255º, 300º/s
- R (wrist roll): +/-190º, 450º/s
- B (wrist pitch/yaw): +/-135º, 450º/s
- T (wrist twist): +/-360º, 720º/s
-
Controller Model: DX200
- Type: ERES-MH005LS-E00
- Power requirement: 3 phase AC, 400/415/440 V, 50/60 Hz, 1 kVA
- Dust proof, IP54 protection
-
Visible part labels inside:
- Servopack SRDA-2MH5
- Converter SRDA-C0A12A21A-E
- CPS-520F2
- YANCD-YSF21-E
- YCP21-E
- JANCD-YIF01-4E
- JZRCR-YPU52-1
-
Pendant Type: JZRCR-YPP21-1
- Reinforced plastic construction
- 5.7" color display
- Touch panel
- IP65 protection
- Manufactured in 2016
-
Hour Meters:
- Control power time: 45123
- Servo power time: 28975
- Playback time: 10473
- Moving time: 1638
