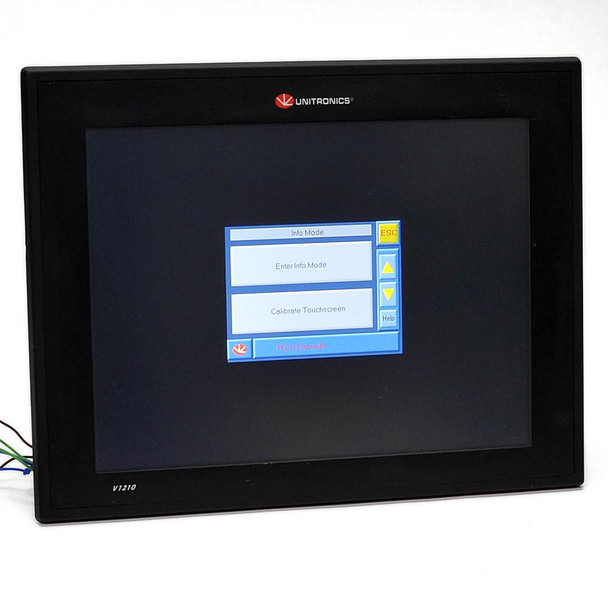

Unitronics V1210-T20BJ Color 12.1" Touch Screen PLC and HMI CAN/Serial/Ethernet
- SKU:
- A20D003
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Unitronics
Model: V1210-T20BJ
Condition: Used. Comes in non-original packaging. This HMI is in fair cosmetic condition with a few tiny scratches, mostly around the very edges of the display, that do not interfere with function.
The photos show the exact item(s) the buyer will receive.
Notes: This unit is in good working condition. We used the USB port and our own computer to erase the old user's programming and update the OS to the latest version using software downloaded from Unitronics. We were able to verify the PLC will run a project without errors. The touch screen passed its calibration and responded as expected to user inputs. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Unitronics V1210 HMI/PLC with V200-18-E3XB
- (1) Kingston Canvas Select Plus MicroSD Card
- (1) USB Cable
Specifications:
- Manufacturer: Unitronics
- Model: V1210-T20BJ
- Vision OPLC Programmable Logic Controller with Color Touch Panel HMI Interface
- 12.1" Display
- 2 Isolated RS232/RS485 ports
- USB programming port
- Isolated CANbus port
- EtherNet port
- MicroSD memory card storage
- Power: 12/24 V DC
- Suitable for use in hazardous locations
- IP66/IP65/NEMA4X protection when panel mounted
-
Snap-in I/O module: V200-18-E3XB
- Digital inputs: 18 isolated x24 VDC
- Analog inputs: 4 isolated TC/PT100/0-10VDC, 0-20mA, 4-20mA
- Digital outputs: 2 isolated x 24 VDC pnp (0.5A)/NPN, 15 isolated x relay 30 VDC, 250 VAC 3A resistive
- Analog outputs: 4 isolated x 0-10VDC, 4-20MA
