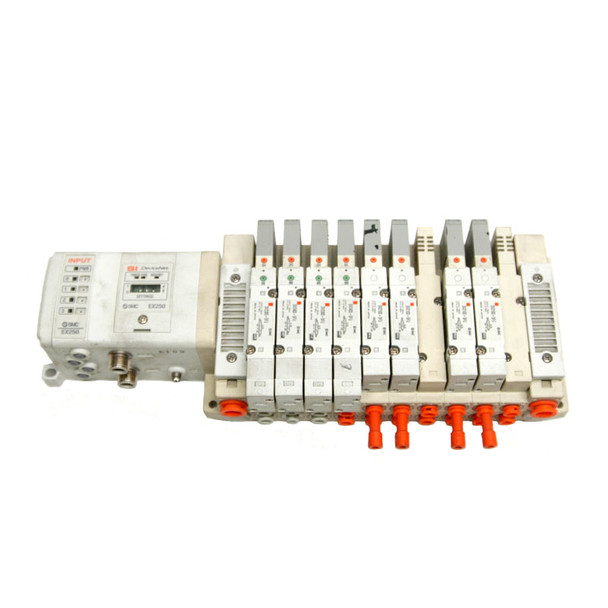

SMC Pneumatics EX250-SDN1 IE3 Manifold I/O Base w/Various Solenoid Air Valves

Manufacturer: SMC

Model: EX250-SDN1

Condition: Used. Comes in non original packaging.  Item has some minor wear from previous use but is in good cosmetic condition. The photos show the exact item(s) the buyer will receive.

Notes: No tests were performed. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) SMC EX250-SDN1 Manifold
• (1) SMC EX250-IE3 Input Unit
• (2) SMC SV2300-5FU Solenoid
• (2) SMC SV2400-5FU Solenoid
• (4) SMC SV2100-5FU Solenoid

Specifications:

• Manufacturer: SMC
• Model: EX250-SDN1
  • Voltage: 24VDC
  • Current: 100mA
  • Input: 32 Points, 1A
  • Output: 32 Points, 2A
  • IP67
• Model: EX250-IE3
  • Voltage: 24VDC
  • Input: 4Points/120mA
  • Fuse: 0.5A, 48VDC
  • IP67
• Model:  SV2300-5FU
  • Fluid: Air
  • Operating pressure range: 0.2 to 0.7MPa
  • Response time ms (at 0.5MPa): 33 or less
  • Coil rated voltage: 12, 24VDC
  • Ambient and fluid temperature: -10 to 50 C
  • Enclosure: IP67 (based on IEC529)
• Model:  SV2400-5FU
  • Fluid: Air
  • Operating pressure range: 0.2 to 0.7MPa
  • Response time ms (at 0.5MPa): 33 or less
  • Coil rated voltage: 12, 24VDC
  • Ambient and fluid temperature: -10 to 50 C
  • Enclosure: IP67 (based on IEC529)
• Model:  SV2100-5FU
  • Fluid: Air
  • Operating pressure range: 0.15 to 0.7MPa
  • Response time ms (at 0.5MPa): 33 or less
  • Coil rated voltage: 12, 24VDC
  • Ambient and fluid temperature: -10 to 50 Enclosure: IP67 (based on IEC529)
