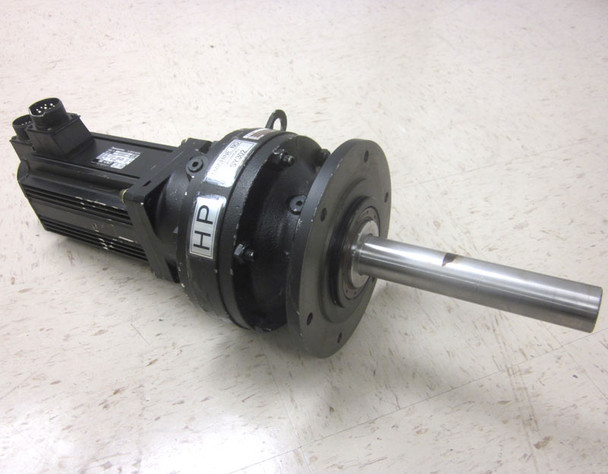

Panasonic/Matsushita AC Servo Motor & Sumitomo Cyclo Drive CNVXMS 200V 3-Ph

Manufacturer: Panasonic

Model: MSMA302P2D

Condition: Used. Comes in non-original packaging.  It has scuffs and scratches from normal use. The photos show the exact item(s) the buyer will receive.

Notes: This item was not tested by us since we do not have the proper resources, though it was removed from a working facility.  NOTE:  The power connector is slightly damage, as seen in the pictures. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Panasonic, MSMA302P2D, AC Servo Motor
• (1) Sumitomo, CNVXMS-6125-SV-15, Cyclo Drive
• (1) Encoder

Specifications:

• Servo Motor:
  • Manufacturer:  Panasonic / Matsushita Electric
  • Model:  MSMA302P2D
  • Rated Frequency:  200 Hz
  • Input:
    • Voltage Specifications:  200V
    • 18.6 Amps
    • 3 Phase
  • Cont. Torque:  9.54 Nm
  • Ins. Class:  F
  • IP 65
  • Rating:  S1
  • Symbol:  MSMA
  • Type:  Low Inertia
  • Motor Rated Output:  3.0 kW
  • Rotary Encoder Specifications:
  • Format:  Incremental
  • Pulse Counts:  2500P/r
  • Resolution:  10000
  • Wires:  5
  • Shaft:  Round
  • Rated Rotational Speed (r/min):  3000
  • Encoder
• Cyclo Drive:
  • Manufacturer:  Sumitomo
  • Model:  CNVXMS-6125-SV-15
  • Ratio:  15:1
  • Output Direction:  Universal Maintenance Free
  • Mounting:  flange Mount, V-Casing
  • Input Connection:  Hollow Input Shaft, with Motor
  • Special Design
  • Size:  6125
  • Input:
  • 3.0 kW
  • 3000 r/min

AS-IS

• No returns - No refunds - No exchanges
• By purchasing this item, you are agreeing to not seek reimbursement should the item not function to the manufacturer's specifications.
• Read the notes carefully to ensure you are buying something you can use
• See complete terms
