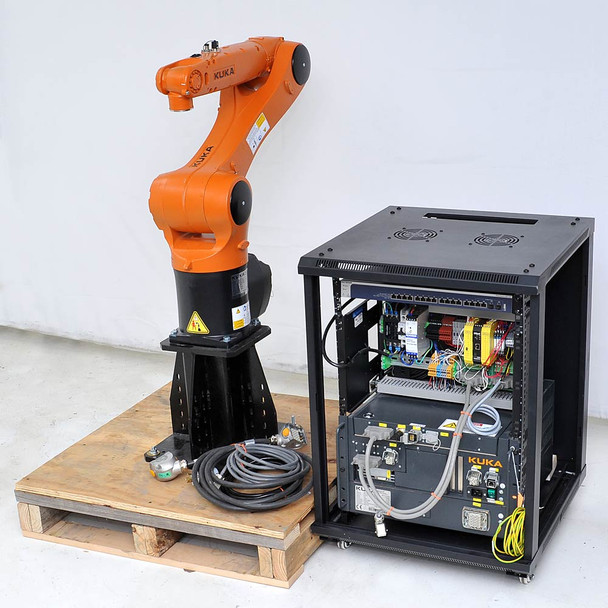

Kuka KR 10 R1100 sixx Robot Arm 10kg Payload w/ C4 Compact Controller +Cables
- SKU:
- A26D003
- MPN:
- KR10
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Watch Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Manufacturer: Kuka
Model: KR10
Condition: Used. This set is in fair cosmetic condition, with some scuffs/scratches but pretty clean. There are scuffs/scratches on both the arm and the controller as shown. The labels on the arm are peeling a little bit, and the connector labels on the controller are faded. The controller is too heavy for the rack mounting so it bent the rails a little, and now has a painted 2x4 holding up the back of the controller. The wheels of the cabinet roll easily but vibrate when being moved around. The X31 connector on the manipulator has a small piece of plastic chipped off, but the connector still mates easily and securely.
The photos show the exact item(s) the buyer will receive.
Notes: This robot is in good working condition, runs quietly, and reports only 361 hours runtime (see photo #9). We were able to get all 6 axes moving in start-up mode after reconfiguring the program slightly to remove references to the previous owner's networked safety parts. The diagnostic report said the batteries were at 25.3 Volts, but we can't guarantee capacity/runtime of the batteries. We left the robot parked as close to the transport position called out on the base as possible (see photo #8). No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Kuka KR10R1100sixx Manipulator
- (1) Kuka KRC4 Compact Controller
- (1) 00168334 SmartPad Teach Pendant
- (1) 00209930 Robot Cable
- (1) 00261091 Robot Cable
- (1) Power Cable for Controller
- (2) 50-pin cables (X11, X12)
- (1) X55 Power Cable
- (1) Ground Cable
- (1) 19" Equipment Rack
Specifications:
- Manufacturer: Kuka Roboter GmbH
- Agilus 6-axis Industrial Robot Arm with Controller and Cables
- 1.1 meters reach
- 10 kg max. payload
-
Manipulator arm type: KR 10 R1100 sixx
- Art. No.: 10021618
- Manufactured in 2017
- Load rating: 5 kg rated, 10 kg maximum
- Maximum range: 1101 mm
- Pose repeatability: 0.03 mm
- In-line wrist protection: IP54
- Weight (without pedestal): 55 kg
- ~14" tall mount pedestal
-
Motion Range:
- A1 (base): ±170 °
- A2: -190 ° / 45 °
- A3: -120 ° / 156 °
- A4: ±185 °
- A5: ±120 °
- A6 (hand/effector mount): ±350 °
-
Speed with rated payload
- A1: 300 °/s
- A2: 225 °/s
- A3: 225 °/s
- A4: 381 °/s
- A5: 311 °/s
- A6: 492 °/s
-
Controller type: KR C4 Compact
- Art.No.: 11050248
- Compact Robot Controller
- Integrated EtherCAT and I/O
- KR C V8.3.32
- Windows 7 Embedded Standard
- Power supply requirement: 1 phase AC, 230 V, 50/60 Hz, 12 A
-
Rack includes minor auxiliary equipment including:
- Breakout terminals for X11 and X12 DSUB50 connectors
- Power filter
- Circuit breakers
- Power supply
- DIN rail wiring terminals
- Netgear ProSafe XS716T network switch
- Mosaic Reer M1 main safety unit, MBEM communication module, MOR458 relay output
