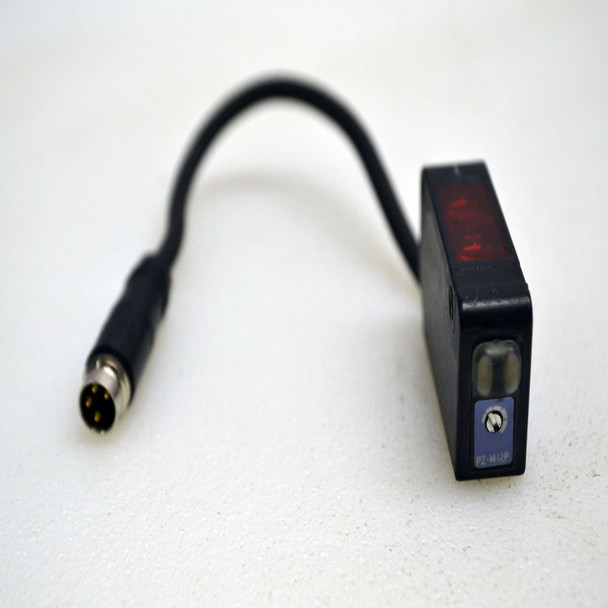

Keyence PZ-M12P Photoelectric Sensor Square Reflective M8 Connector Type PNP

Manufacturer: Keyence

Model: PZ-M12P

Condition: Used. Comes in non original packaging. Sensor is good cosmetic condition with minor scuffs from prior use. Cosmetic appearance may vary slightly from pictured unit(s).

Notes: Sensors were removed from a working environment. No testing was performed after removal. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Keyence PZ -M12P Photoelectric Square Reflective M8 Connector

Specifications:

• Manufacturer: Keyence
• Model: PZ-M12P
• Output: PNP
• Detecting Distance: 5 to 100 mm
• Setting Distance: 30 to 100 mm
• Light Source: Red Light
• Response Time: 1ms max
• Operation Mode: Light-On/Dark-On (switch-selectable)
• Indicators:
  • Output: Orange LED
  • Stable Operation: Green LED
• Control Output: Maximum PNP Open- Collector Output: 100 mA (26.4 V or Less); Residual Voltage: 1 V or Less
• Power Voltage: 12 to 24 VDC
• Power Consumption: 30 mA or Less
• Operating Ambientluminance: Incandescent Lamp 5000 Lux Max.
• Sunlight: 20000 Lux Max
• Operating Ambient Humidity: 35 to 85 Percent (no condensation)
• Case Material: Glass-Fiber Plastic
• 4 pin
