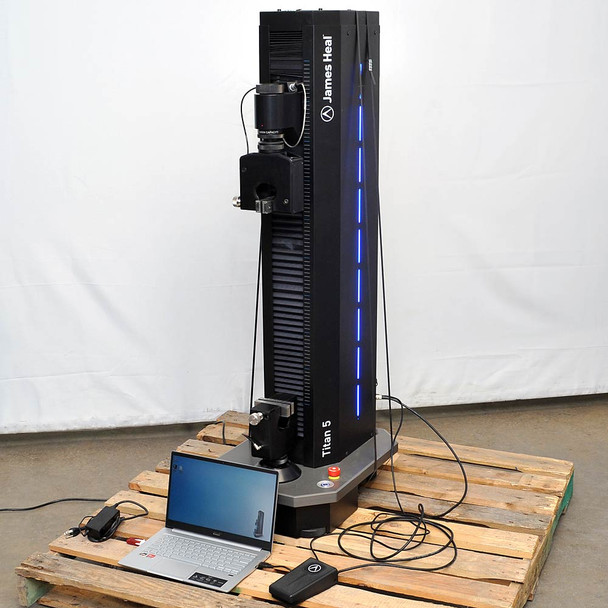

James Heal Titan 5 Universal Force Tester 5kN with PC
- SKU:
- A14D011
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Watch Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Manufacturer: James Heal
Model: Titan 5
Condition: Used. This tester is in good cosmetic condition, with only minor blemishes from prior use except for the top and bottom corners of the rear panel, which have heavy scratches through the paint (see photo).
The photos show the exact item(s) the buyer will receive.
Notes: This machine is in good working condition. We installed fresh Windows 10 on a computer and installed TestWise from the included USB. Note that we were not able to get the software to show the machine serial number, but otherwise it has full functionality. We verified the sample jaws open and close using air power, the head raises and lowers, the load cell records positive and negative forces, and a test can be run automatically, recording results on an on-screen graph. Almost everyone who walked past complimented the visually-interesting lights on the side of the tester. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) James Heal Model 1710 TITAN 5 Tester
- (1) Herga 6254-CT Foot Pedal
- (1) USB Drive with Software
- (1) Acer Swift3 N19C4 Notebook Computer
- (1) Power Cable for Computer
- (1) USB Cable
- (1) Power Cable
Specifications:
- Manufacturer: James Heal
- Model: Titan 5
- Universal Strength Tester
- For tension and compression testing of apparel, nonwovens, and non-textile materials
- Capacity: to 5000 Newtons (5kN)
- Test/return/jog speed: 1 to 2000 mm/min
- Maximum stroke: 560 mm (500 mm with current jaws)
- Positional accuracy: 0.00125m
- T27 Pneumatic Fabric Grips (included)
- Constant Rate of Extension (CRE) measuring principle
- Motorized automatic force applications
- Pneumatic or manual jaw opening/closing
- Automatic parameters setup
- Automatic jaw opening
- Automatic head positioning
- Quick change load cells
- Quick change jaw face
- "smart" button for sample loading and test start directly at the instrument
- Foot switch control
- USB PC control
- Power requirement: 110-230V 50/60Hz 750W plus filtered, compressed air 7-10 bar
