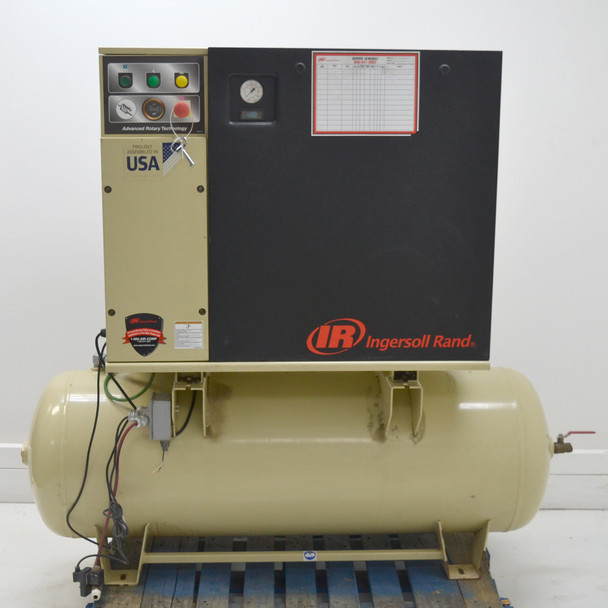

Ingersoll Rand UP6-15CTAS-125W/D 3PH 230/460 80 Gal. Rotary Screw Air Compressor

Manufacturer: Ingersoll Rand IR

Model: UP6-15CTAS-125W/D

Condition: Used. This Air Compressor is in good cosmetic condition with scuffs and scratches from regular industrial use but otherwise very clean.  This Compressor has an integral refrigerated air dryer built into it that is not currently functioning.  The exit pipe has been cut off at the valve.  1 Front Key Included.  Comes in non-original packaging.
The photos show the exact item(s) the buyer will receive.

Notes: We first wired up the 3-phase compressor and powered it on to observe the compressor turned on, build up, and maintain 122 psi.  The On, Off, and Emergency Stop buttons functioned as designed and the on indicator light was bright.  The Hours indicator showed that the Compressor has been run 20757.9 Hours.  We then separately connected the refrigerated air dryer to power and observed it did not run.  We do not know why the refrigerated air dryer is not functioning.  No Additional Testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1)  Ingersoll Rand UP6-15CTAS-125W/D 3PH 230/460 80 Gal. Rotary Screw Air Compressor

Specifications:

• Manufacturer:  Ingersoll Rand
• Model:  UP6-15CTAS-125w/D
• Description:  Rotary Screw Air Compressor
  • 3PH
  • 230/460V
  • 60Hz
  • 80 Gal. Horizontal Tank
  • Max Pressure:  125 psi
  • 15HP
  • Pump Speed 6250
  • 20757.9 Hours
  • 1 Key Included.
  • Ingersoll Rand 42567933 Integral Chiller Dryer
    • (Not Functional)
    • MAWP PSIG 250
    • M119 Wiring Diagram:  REV J
    • Refrigerant:  R134A
    • 115VAC
    • 1 PH
    • 60Hz
    • 0.5 HP
