Dorner 22CTM04-06002AA00501H 2200 Series Conveyor Belt
- SKU:
- Z48S006
- MPN:
- 22CTM04-06002AA00501H
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Dorner
Model: 22CTM04-06002AA00501H
Condition: Used. Comes in non-original packaging. This low profile conveyor belt unit is in used condition with scuffs and scratches from previous use, but nothing that would affect functionality. This conveyor unit is missing its belt and will need a replacement for it to work as intended.
The photos show the exact item(s) the buyer will receive.
Notes: This low profile conveyor belt unit was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:

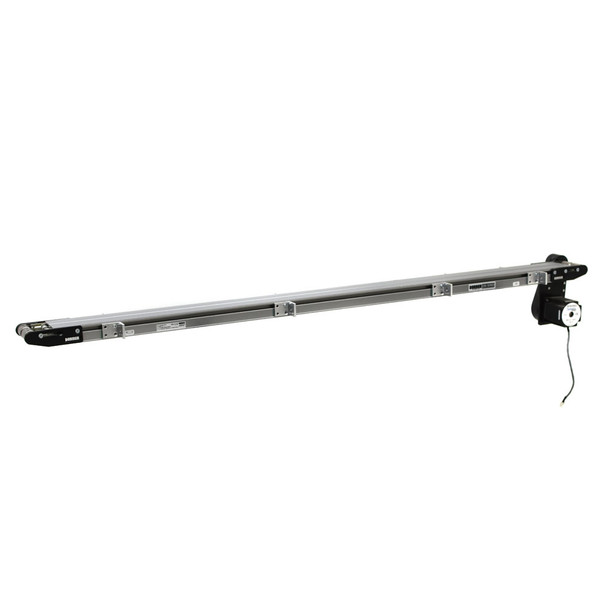

- (1) Dorner 22CTM04-06002AA00501H 2200 Series Conveyor Belt 6ft x 6in
- (1) Automation Direct STP-MTRH-34097 SureStep Motor
Specifications:
- Manufacturer: Dorner
- Model: 22CTM04-06002AA00501H
- Series: 2200 Series (6" × 6ft)
-
Description: Small-Parts Belt Conveyor
- Width: 6 in
- Length: approx. 6 ft
- Load Capacity: ~120 lb
- Max Belt Speed: ~122 m/min (~400 ft/min)
- Guide / Bedplate: V-groove bedplate (for guiding belt)
- Frame Material: Aluminum profile
- Side Rails / Guides: T-slot design for accessory mounting
- Operating Environment: general factory use, small parts handling
- Manufacturer: Automation Direct
- Model: STP-MTRH-34097
-
Description: High-Torque Stepper Motor
- Torque (Holding): 465 oz-in (3.27 N·m)
- Step Angle: 1.8°
- Current Rating: 3.4 A/phase
- Voltage Rating: 48 VDC (typical driver supply)
- Shaft Diameter: 0.375 in (9.525 mm)
- Shaft Length: 0.94 in
- Wiring Type: 8-wire (bipolar series/parallel or unipolar)
- Frame Size: NEMA 34
- Length: 3.9 in (99 mm)
- Mounting: Face-mount, standard NEMA 34
- Rotor Inertia: 3.6 oz·in² (0.65 kg·cm²)
- Phase Resistance: 1.1 ohm (per phase, series)
- Insulation Class: B (130°C)
