Bachmann MC212 PLC Processor Complete AIO288 DIO216 Analog Digital Input/Output
- SKU:
- A23D001
- MPN:
- MC212
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Bachmann
Model: MC212
Condition: Used. Comes in non-original packaging. This lot is in fair cosmetic condition with only minor scuffs/scratches and light marker residue from prior use.

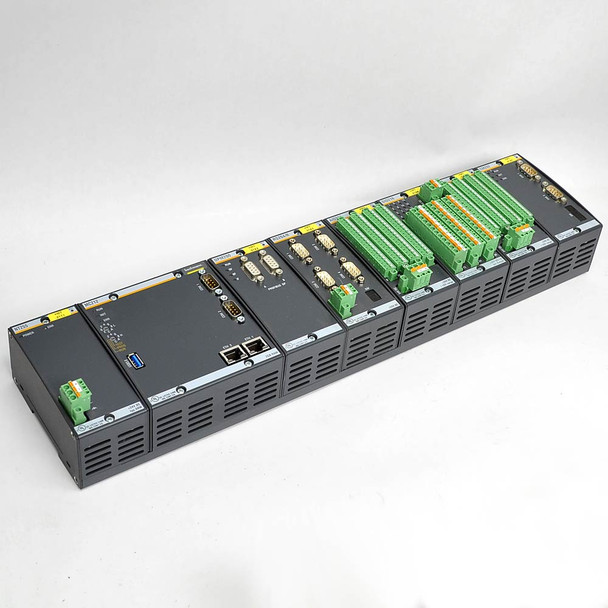

The photos show the exact item(s) the buyer will receive.
Notes: This was removed from a decommissioned system and given a quick power check by applying 24VDC to each power input connector. With nothing else connected as shown, everything gave at least a brief flash from their RDY lights at initialization, and settled on the lights shown in photo #3. The DIO216 had a very faint flash, and the DIO216 and one of the AIO288 modules showed no other indications (whereas the others all at least had a blinking light); we are not sure if this is normal. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Bachmann NT255 Power Supply
- (1) Bachmann MC212 Processor Module
- (1) Bachmann DPM200 Profibus Distributed Peripherals Master Module
- (1) RS204/R Interface Module
- (2) Bachmann AIO288 Analog Input Module
- (1) Bachmann DIO216 Digital Input Module
- (1) Bachmann CM202 CAN Interface Module
- (1) Bachmann BS209 with 2x BS204 Backplane
- (1) 4GB memory card
Specifications:
- Manufacturer: Bachmann
- MC200-series programmable logic controller
- MC212 CPU module, Input/Outputs, Fieldbus and serial communications
-
NT255 power supply
- Input voltage range: 18-34 V DC
- Power rating: 58 Watts
- Reverse polarity protected
-
MC212 MC200 processor module
- 1.3 GHz DualCore CPU
- Symmetrical multiprocessing for real-time systems
- Fan-free
- 2GB DDR4 memory
- 2x Eth100/1000 Ethernet
- 1x RS232
- 1x RS232/422/485
- 1x USB 3.0
- TPM
- CFAST slot
-
DPM200 Profibus DP master module
- Can operate as Distributed Peripherals master, slave, or combined
- Transfer rates to 12 Mbaud
-
RS204/R interface module
- Connect 4 asynchronous serial interfaces to M200 controller
- Can combine RS232/RS422/RS485
- Up to 1.5 Mbaud
-
AIO288 analog input/output module
- 8 inputs
- 8 outputs
- Single-ended or differential intputs
- Wire break detection for inputs (voltage and temperature)
- Short-circuit-proof outputs
-
DIO216 digital input/output module
- 16 channels
- Channels can be configured as input or output
- Configurable interrupt inputs
- Status display LEDs per channel
-
CM202 CAN interface module
- Isolated
- Short circuit-proof
-
BS209 backplane/BS204 Boards
- Mechanically and electrically connects M200 control systems
- Vibration proof fixing of modules
- Can be snapped on DIN rail
