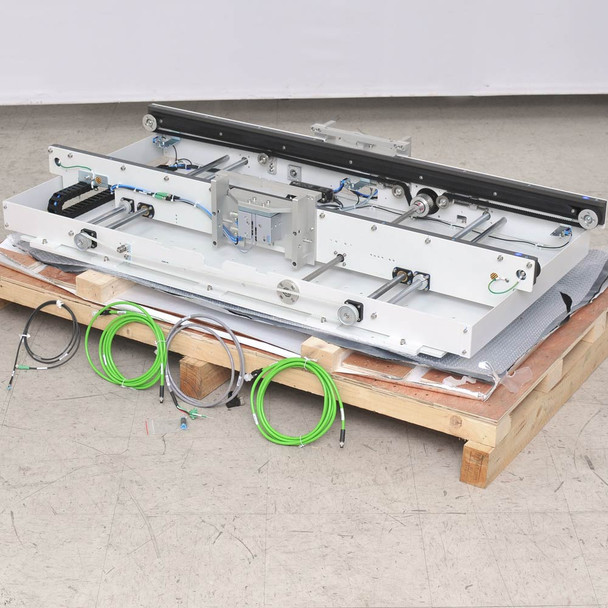

1.4m Open-Center 1" Edge Belt Conveyor with Servotronix Motor, Adjustable

Current Stock:

Product Description

Manufacturer: Unbranded


Condition: New Other. This item is in Good cosmetic condition with only minor scuffs here and there. The photos show the exact item(s) the buyer will receive.

Notes: No manuals, cords/cables, or additional items are included if not listed or shown.


  • (1) 1.4m Open-center Conveyor Module


  • Open-center edge-belted conveyor
  • 140 cm total length
  • Manual width adjustment, 8cm to 56cm opening between belt edges
  • 1" Wide belts
  • Belts are gear driven by Servotronix stepIM motor
  • Motor: Servotronix stepIM series
    • Model: IST-34M26EC100000-BM
    • P/N: PRDr34SBM6520100M-01
    • BUS input: 14-75 VDC
    • Auxiliary input: 6-24 VDC
    • Holding torque: 5.0 Nm
  • Width adjustment has (2) drive screws and (2) LM-16UU ball bearing linear shafts to maintain parallel
  • Pneumatic product stops "Tray Locks" on both sides, (Festo DFM-25-20 air cylinders)
    • Tray locks are completely outside the belt area, do not block the belts at all
    • Tray locks have about 24mm under-stop clearance
    • Tray locks have autoswitches for up and down
    • Tray locks actuated by Festo VUVG-L10 valve with 24VDC solenoid
  • (3) optical product sensors, Sick WTB2S-series
  • Entire assembly has a flat bottom plate, simple to integrate in your setting
  • Approximately 35" wide
  • Approximately 14cm from mounting plate to top of conveyor belts
  • Beckhoff D-33415 EtherCAT connection terminal gives central location to hook up all the switches & sensors
  • Manufactured in 2020
