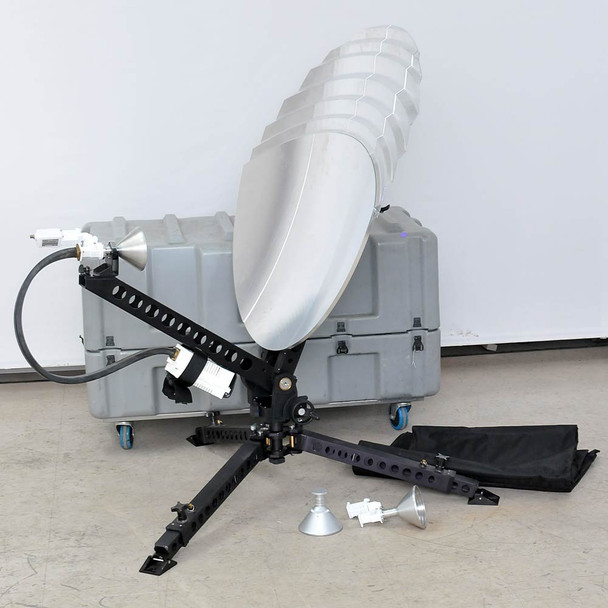

Portable Ku-Band Antenna Dish with Modular Tripod, Comtech LPOD 8W BUC, Case

Manufacturer: Unbranded

Model: DOES NOT APPLY

Condition: Used. This lot is in Good overall cosmetic condition, except the back of the antenna dish has a missing clip on one side.  The case has some travel wear.
extend a food
missing tab The photos show the exact item(s) the buyer will receive.

Notes: We are not able to test the electronics package on this antenna.  We verified that it has all the pieces to set up, and the tilt/swivel dials work.  The antenna movement feels a little flimsy and this should probably not be used in high wind conditions.  Please NOTE: assembly of the antenna dish from its seven component pieces was a little tricky, and alignment of the panels is easier to get wrong by a few millimeters than to have perfect alignment.  The case rolls smoothly.  No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Portable antenna
• (1) Comtech LPODRK0-36 LPOD BUC
• (2) Metal feedhorns with Norsat  OMT-KuE-1 TX Reject filters
• (1) Plastic alignment dummy feedhorn
• (1) Hardigg travel case with foam inserts

Specifications:

• Portable communications terminal
• 66lbs antenna with BUC and feedhorn installed as shown (150 lbs including rolling case)
• Antenna dish dimensions, approximate: 39" W x 41" H
• Legs extend a foot further than shown for stability
• Antenna tilts and swivels with hand wheels
• Swivel feet on tripod
• Amplifier/Block Up Converter
• Comtech EF Data LPOD BUC
• Model LPODRK0-36
• Input: 950-1700MHz
• Output: 13.75-14.6GHz
• Output power: 8W P1dB/10W Psat
• IF/REF input 0 dBM max
• 18-60V DC 2A DC power only

30 Day Guarantee

• Guaranteed to be as described
• Can be returned for flaws or malfunctions that were not disclosed
• See complete terms

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
