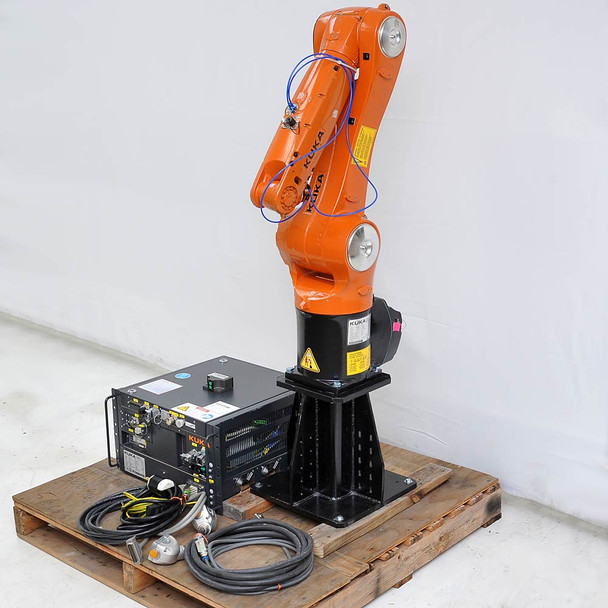

Kuka KR 10 R1100 sixx Robot Arm 10kg Payload w/ C4 Compact Controller +Cables
- SKU:
- A27D001
- MPN:
- KR10
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Watch Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Manufacturer: Kuka
Model: KR10
Condition: Used. This set is in fair cosmetic condition, with some scuffs/scratches but pretty clean. The pendant has a scratch and dig on the bottom right corner of the touchscreen area. There are scuffs/scratches on both the arm and the controller as shown. There are adhesive label residues in many places. It looks like a couple of side caps are missing from two of the manipulator elbows. We do not have the mate for the quick release tool changer. The maintenance history reflects a service by Kuka in 2023.
The photos show the exact item(s) the buyer will receive.
Notes: This robot is in good working condition as far as we can test, with two notable issues: Joint 6 makes some regular clicking sounds when turning (shown on the video). The pendant touch screen works but has increasingly bad offsets nearer the bottom of the display, and the area near the scratch doesn't really work at all; a computer mouse plugged into the USB port on the pendant is a good workaround. The hours counter reports only 746 hours runtime. We were able to get all 6 axes moving in start-up mode after reconfiguring the program slightly to remove references to the previous owner's networked safety parts. The diagnostics call the state of the internal battery "Charge ok" but we can't guarantee capacity/runtime of the batteries. We left the robot parked as close to the transport position called out on the base as possible. We did not test the proximity switch or tool changer. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Kuka KR10R1100sixxWP Manipulator
- (1) Kuka KRC4UL Compact Controller
- (1) Kuka 00168334 SmartPad Teach Pendant
- (1) 00209930 Robot Cable
- (1) 00201680 Robot Cable
- (1) Power Cable for Controller
- (1) 50-pin Cable (fits X11)
- (1) Ground Cable
- (1) 00-207-453 Cable for Proximity Switch
- (1) Euchner SN02X12-731L-MC2459 Proximity Switch
Specifications:
- Manufacturer: Kuka Roboter GmbH
- Agilus 6-axis Industrial Robot Arm with Controller and Cables
- 1.1 meters reach
- 10 kg max. payload
-
Manipulator arm type: KR 10 R1100 sixx WP
- Art. No.: 10018423
- Manufactured in 2014
- Load rating: 5 kg rated, 10 kg maximum
- Maximum range: 1101 mm
- Pose repeatability: 0.03 mm
- In-line wrist protection: IP54
- Weight (without pedestal): 55 kg
- ~14" tall mount pedestal
- ATI QC011M Tool Changer with pneumatic-only passthrough
-
Motion Range:
- A1 (base): ±170 °
- A2: -190 ° / 45 °
- A3: -120 ° / 156 °
- A4: ±185 °
- A5: ±120 °
- A6 (hand/effector mount): ±350 °
-
Speed with rated payload
- A1: 300 °/s
- A2: 225 °/s
- A3: 225 °/s
- A4: 381 °/s
- A5: 311 °/s
- A6: 492 °/s
-
Controller type: KR C4 UL Compact
- Art.No.: 11074186
- Compact Robot Controller
- Integrated EtherCAT and I/O
- KSS 8.5.8
- Windows 7 Embedded Standard
- Power supply requirement: 1 phase AC, 230 V, 50/60 Hz, 12 A
