Jiangsu Tianyuan Testing TY-7003 Precision Micro Injection Molding Machine-Parts
- SKU:
- A21D001
- MPN:
- TY-7003
- Shipping:
- Calculated at Checkout
- Condition:
- For Parts or Not Working
- Warranty & Returns:
- Final Sale – No Returns
Description
Manufacturer: Jiangsu Tianyuan Testing Equipment
Model: TY-7003

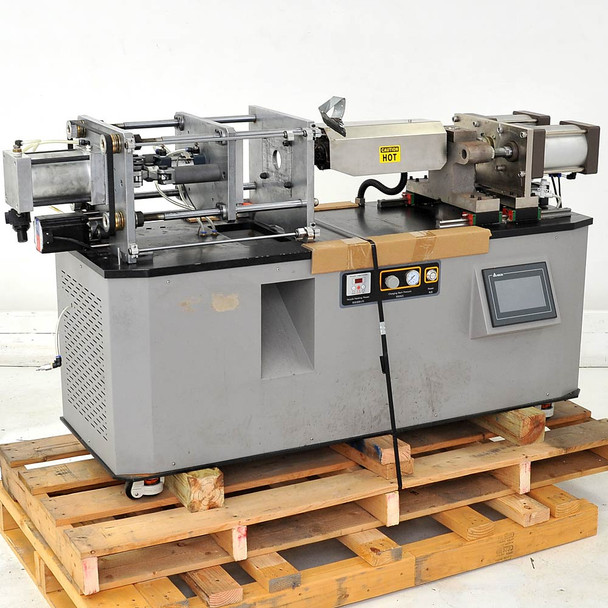

Condition: For Parts or Not Working. This machine is in fair cosmetic condition. There are scuffs/scratches and residues from prior use all over, including baked-on black plastic at the injection nozzle and grease on the moving parts. The safety covers are missing at both ends of the machine, and a chunk of metal by a sensor is the previous owner's attempt at bypassing a cover safety switch. The hole where a hopper would insert is worn out of shape, and the hopper is missing. There is dark residue splashed on the front bottom cover. The mains power cord has no plug.
The photos show the exact item(s) the buyer will receive.
Notes: We were assured by the prior owner that this machine works, but with it missing vital safety components, we have to list it for sale AS-IS. Since we don't really know how the machine works, we were not able to perform thorough testing. By pressing on-screen buttons in manual mode, we were able to get the heater/extrusion parts to move forward and back, and we made the ejection cylinder rapid-fire its ejecting motion. We never got any motors to move, nor the mold holding parts to open and close. Several buttons, when pressed, cause air valve and air movement sounds, and sometimes the air regulator would show pressure on some lines, with no resulting motion. The touch screen is clear and bright, and responds to user inputs as expected. All the heater sections on the extruder came up to temperature and stayed hot. If any passwords or logins are required, we do not have them. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Jiangsu Tianyuan TY-7003 Injection Molder
Specifications:
- Manufacturer: Jiangsu Tianyuan Testing Equipment Co., LTD
- Model: TY-7003
- Precision Micro Injection Molding Machine
- Screw diameter: 20 mm
- Clamping force: up to 5T
- Maximum shot volume: 25 cc
- Injection pressure: up to 57 MPa
- Mold opening stroke: 70 mm excluding mold thickness
- Barrel temperature: up to 360 ºC (3 zones)
- Poewr requirement: 220V 50Hz 2.2kW plus compressed air
- Length-to-diameter ratio: 20:1
- Injection stroke range: 0-70 mm
- Injection resolution: 0.1 mm
- Feed speed: 0.1-60 RPM (reduced torque to 100 RPM)
- Column spacing: 280 x 186 mm
- Delta touch screen HMI interface, PLC located in stand
- Casters with adjustable feet
