Hubbell HBL4100P7W Male Plug 100A 480V 40HP 3P4W
- SKU:
- A19D001
- UPC:
- 783585404042
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- Easy 30-Day Free Returns
Description
Manufacturer: Hubbell
Model: HBL4100P7W
Condition: Used. Comes in non-original packaging. This item is in good cosmetic condition with barely-any marks from prior use. This was in a stationary installation, so it was probably inserted and removed from its mating HBL4100R7W perhaps a handful of times.
The photos show the exact item(s) the buyer will receive.
Notes: This was removed from a decommissioned stationary machine installation. We verified it mated easily with the receptacle (which is available separately, from us, while supplies last). No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:

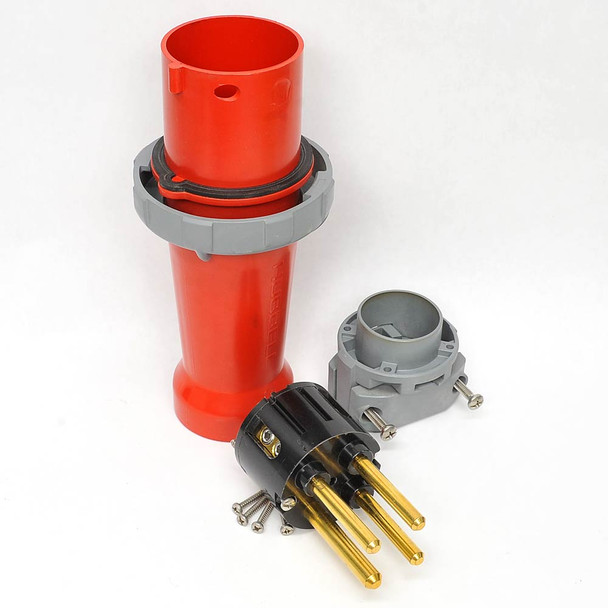

- (1) Hubbell HBL4100P7W Male Plug Connector
Specifications:
- Manufacturer: Hubbell
- P/N: HBL4100P7W
- IEC Pin & Sleeve Device
- Industrial Grade
- Male Plug
- Current rating: to 100 Amps
- Voltage rating: to 480 Volts
- Power rating: to 40 Horsepower
- Certified for interrupting at full rated current
- Grounding
- Watertight
- Solid one-piece pins
- Gasketed sealing
- Enclosure type: 3R, 3RX, 4X, 12, IP67, IP69K (when connected)
- UL, CSA listed 231A
- Operating Temperature: Maximum Continuous 75 °C, Minimum - 40°C w/o impact
- Cables are secured by dual allen-headed terminal screws each
- Rugged, super tough one-piece housing
- Thermoset polymer contact carrier provides high resistance to electrical tracking
- Withstands higher temperatures which may results from overload or arcing
- External cord grip provides superior strain relief on conductors
- Meets NEC 430.109(F) requirements
- Approved "line of sight" disconnecting means
- Color: red
-
Other visible markings:
- P-9320
- P-9045
- P-5858
