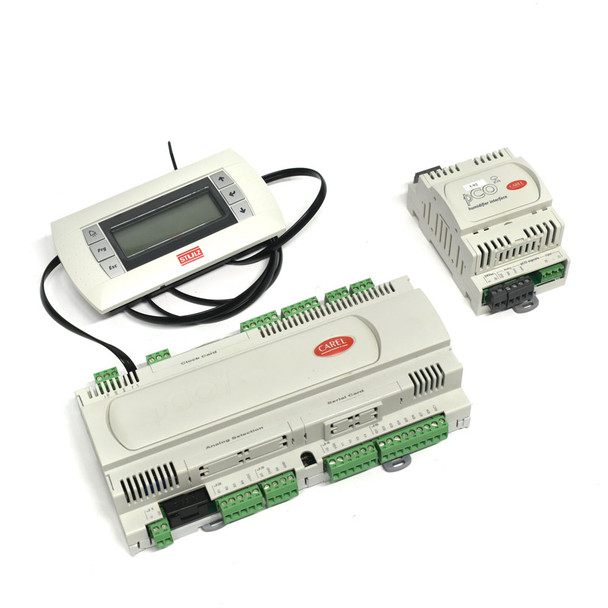

Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface

SKU:
A21S014
Shipping:
Calculated at Checkout
Condition:
Used
Warranty & Returns:
Easy 30-Day Free Returns
  • Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface
  • Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface
  • Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface
  • Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface
  • Carel PCO1002AS0 I/O Controller w/PGD0000F01 Temp Display & PCOUMI2000 Interface
$299.99
Frequently bought together:

Description

Manufacturer: Carel

Model: PCO1002AS0

Condition: Used. Comes in non-original packaging. This lot is in great condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.

Notes: This lot was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

  • (1) Carel PCO1002AS0 I/O Controller
  • (1) Carel PGD0000F01 Temperature Controller Display
  • (1) Carel PCOUMI2000 Humidifier Interface

Specifications:

  • Manufacturer: Carel
  • Model: PCO1002AS0
  • Description: pCO1 Series programmable microprocessor I/O controller for HVAC/R systems
    • CPU: 16-bit, 14 MHz H8S2320 processor
    • Memory: 1MB Flash program memory, 128kB static RAM, 4kB parameter data memory
    • Power Supply Requirements: 24 VAC ±15% (50/60 Hz) or 22 to 38 VDC
    • Maximum Power Absorption: 13 W
    • Analog Inputs: Universal and passive options supporting CAREL NTC temperature probes, 0-1V, 0-5V, 0-20mA, or 4-20mA signals
    • Digital Inputs: Optoisolated inputs (supports combinations of 24 VAC/VDC or 230 VAC depending on exact board size configuration)
    • Analog Outputs: 2 x optoinsulated 0-10 VDC outputs and 2 x PWM phase-cutting outputs
    • Mounting Type: Standard DIN rail mounting (fits typical 13 or 18 DIN module sizing profiles)
    • Terminal Blocks: Removable screw-type male/female connectors
  • Manufacturer: Carel
  • Model: PGD0000F01
  • Description: Monochromatic graphic LCD user interface for pCO controllers
    • Display Type: Monochromatic graphic LCD terminal
    • Screen Resolution: 120 x 32 Pixels
    • Backlighting Color: Green LED
    • Keypad: Integrated user navigation buttons that mirror the built-in controller layouts
    • Connectivity: Uses an RS485 connection to interface with pCO/c.pCO sistema platforms over a pLAN network
    • Font Compatibility: Supports international fonts in 5x7 and 11x15 pixel sizes
    • Buzzer: No internal buzzer featured on this specific configuration code
    • Mounting Type: Built-in flush panel mount or standalone enclosure mount
  • Manufacturer: Carel
  • Model: PCOUMI2000
  • Description: Humidifier Interface
    • Application: Humidification hardware control integration
    • Interface: OEM peripheral board expansion
    • Frequency: 50/60 Hz
    • Enclosure: IP56 rated

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
