Description

Manufacturer: Tenney TPS

Model: TUJR

Condition: Used. Meets spec with slight degradation in cooling. Watlow F4 retrofit makes for a smoother user experience. No unusual noises during operation. Electrical compartment clean & tidy.

Cosmetically excellent with slight scuffs and scratches consistent with normal use. Clean interior. Supple door seal; door operates/latches easily. Wheels operate well.
The photos show the exact item(s) the buyer will receive.

Notes: We fired up this chamber and noted the TPS-branded Partlow 1462 control was not controlling cooling. It was removed and a single-channel Watlow F4 was installed. The F4 is much more intuitive and supports ramp/soak, 40 profiles, PID control and computer interface via EIA-232/EIA-485 with Modbus RTU protocol. The F4 was manufactured in 2001. Cool control is accomplished via two 250W heaters which balance cooling while compressors continue; simultaneously a dump valve in the R-508B system partially abates cooling. Heat control is via one 250W heater. When high stage compressor shuts off the second heater is disabled.

The F4 was set up with parameters known to be valid in this system (TUJR chamber & F4) and control performance was verified. The new parameters installed in the F4 will be sent along in documentation; the original user manual and test data are also included in electronic form. Correct operation of the F4 was well as cooling & heating were verified. Pics show ultimate temperature; both heaters draw correct current. Compressors draw correct current.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

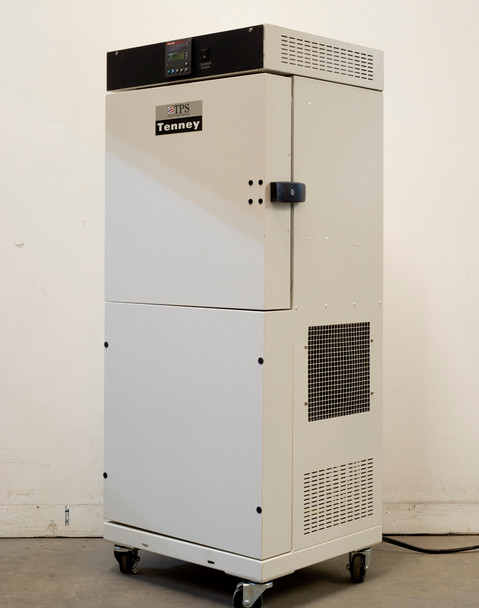

(1) Tenney TUJR Environmental Test Chamber

Specifications:

Manufacturer: Tenney (TPS)
Model: TUJR
Description: Environmental Test Chamber
Date of manufacture: 2005
Temperature range: -75C to +200C
- Cooling: cascade system, tested -75C minimum, tested 25 to
  - -7C in 9 minutes
  - -26C in 20 minutes
  - -38C in 30 minutes
  - -55C in 54 minutes
  - -62C in 71 minutes
- Ultimate temperature = -75C after a long time
- ** Photo shows the TPS-branded Partlow 1462 control installed at time of test **
- Spec: -73C in 55 minutes
Control: +/- 0.3C within 60 minutes
Heat: 250W; 200C reached in 55 minutes
Power requirement: 120V/20A; this did trip our 20A breaker once, NEMA 5-20R or larger outlet required
Interior dimensions: 16” wide, 11” deep, 12” high
Exterior dimensions: 25” wide, 21” deep, 60” high
Weight: 319 lbs.
Access port: one 3” on left wall
Temperature sensor: Platinum RTD
Refrigerant: R-404A/R-508B

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
