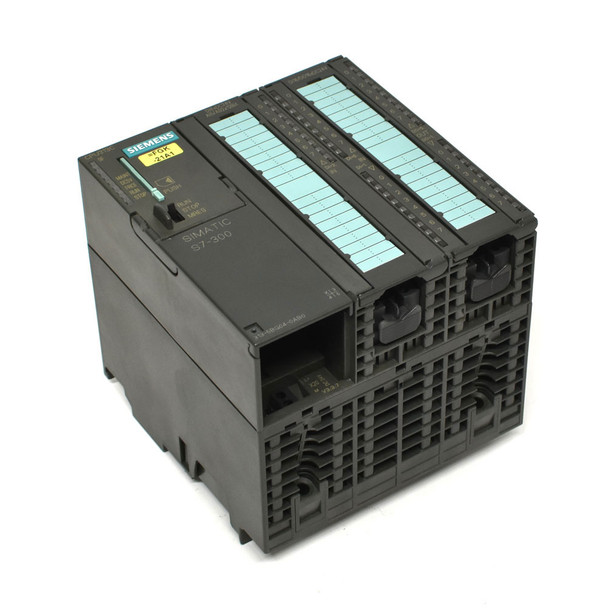

Siemens 6ES7 313-5BG04-0AB0 Simatic CPU Module with MPI
- SKU:
- A07S030
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- Easy 30-Day Free Returns
Description
Manufacturer: Siemens
Model: 6ES7 313-5BG04-0AB0
Condition: Used. Comes in non-original packaging. This CPU module is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.
Notes: We powered the CPU module on with 24VDC and observed its startup. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Siemens 6ES7 313-5BG04-0AB0 Simatic CPU Module with MPI
Specifications:
- Manufacturer: Siemens
- Model: 6ES7313-5BG04-0AB0
- Description: SIMATIC S7-300 Compact CPU module
- CPU Family: SIMATIC S7-300
- Firmware Version: V3.3
- Work Memory: 128 KB
- Memory Card: Micro Memory Card required
- Supply Voltage: 24 V DC
- Permissible Voltage Range: 19.2 V DC to 28.8 V DC
- Recommended External Protection: Circuit breaker 2 A to 4 A
- Mains/Voltage Failure Buffering: Minimum 5 ms
-
Digital Inputs:
- Rated Value: 24 V DC
- Reverse Polarity Protection: Yes
-
Digital Outputs:
- Rated Value: 24 V DC
- Reverse Polarity Protection: No
-
Input Current (Module):
- Rated: 650 mA
- No-load: 150 mA
- Typical Inrush: 5 A
- I²t: 0.7 A²·s
- Power Loss: Typ. 12 W
- Memory Expandability: Micro Memory Card up to 8 MB
- Data Retention on MMC: Minimum 10 years
-
CPU Processing Times:
- Bit operations: 0.07 µs
- Word operations: 0.15 µs
- Fixed-point arithmetic: 0.2 µs
- Floating-point arithmetic: 0.72 µs
-
Digital I/O Addressing:
- Digital Inputs: 24 channels
- Digital Outputs: 16 channels
-
High-Speed Counters: 3 (30 kHz)
- Analog Inputs: 4 channels
- Analog Outputs: 2 channels
- Resistance/RTD Input: 1 channel (Pt100)
-
Analog Input Ranges:
- Voltage: 0-10 V
- Current: 0-20 mA, ±20 mA, 4-20 mA
- Resistance: 0-600 Ω
- RTD: Pt100
-
Analog Output Ranges:
- Voltage: 0-10 V, ±10 V
- Current: 0-20 mA, ±20 mA, 4-20 mA
