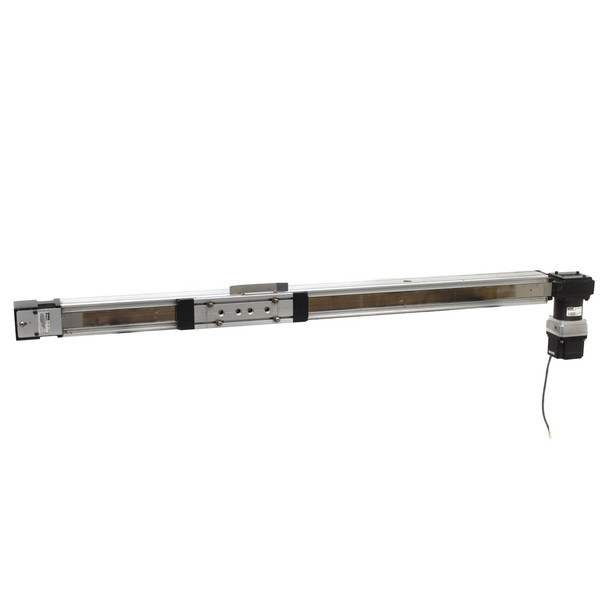

Parker HPLA080 Belt-Driven Linear Actuator 1m Travel 80mm Width w/SureStep Motor
- SKU:
- Z48S008
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Parker
Model: HPLA080D1C1B2T1000DA0000
Condition: Used. Comes in non-original packaging. This belt-driven rodless linear actuator is in used condition with scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.
Notes: This belt-driven rodless linear actuator was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Parker HPLA080D1C1B2T1000DA0000 Belt-Driven Linear Actuator
- (1) AutomationDirect STP-MTRH-34097 SureStep High-Torque Bipolar
- (1) Parker PEN090-003S7 Planetary Gearhead
Specifications:
- Manufacturer: Parker
- Model: HPLA080D1C1B2T1000DA0000
-
Description: Belt-driven rodless linear actuator
- Series: HPLA
- Size: 080 (80 mm profile width)
- Drive System: D1 – Timing belt drive, nominal thrust, maximum life
- Carriage Type: C1 – Standard carriage with load plate
- Bearing Option: B2 – Steel roller bearings
- Travel Length: T1000 – 1000 mm travel
- Link Shaft Option: DA0000 – No link shaft (single-axis configuration)
- Manufacturer: AutomationDirect
- Model: STP-MTRH-34097
-
Description: SureStep High-Torque Bipolar Stepper Motor, NEMA 34
- Holding Torque: 800 oz-in
- Rated Current: 6.3 A/phase
- Step Angle: 1.8° (200 steps per rev)
- Frame Size: NEMA 34
- Motor Type: Bipolar, 2-phase
- Insulation Class: Class B / 130 °C
- Inertia: ~1.40 kg·cm²
- Resistance per Phase: ~0.3 Ω
- Inductance per Phase: ~2.1 mH
- Maximum Radial Load: 39 lb (17.7 kg)
- Maximum Thrust Load (Axial): 25 lb (11.3 kg)
- IP Rating: IP40
- Connector Type: 4-position male
- Manufacturer: Parker Hannifin
- Model: PEN 090-003S7
-
Description: Inline Planetary Gearhead
- Frame Size: 90 mm
- Gear Type: Planetary, Inline
- Ratio Options: 3:1 to 64:1 (varies by sub-variant)
- Maximum Input Speed: Up to 18,000 rpm
- Continuous Output Torque Range: Approximately 28 to 260 Nm (ratio-dependent)
- Radial Load Capacity: Approximately 340 N to 2400 N (variant-dependent)
- Backlash: Less than 8 to 18 arc-minutes (ratio-dependent)
CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
