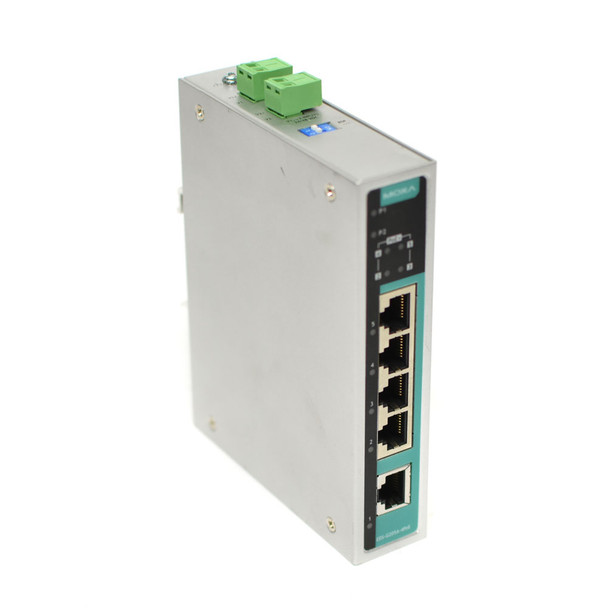

Moxa EDS-G205A-4PoE Unmanaged Ethernet Switch 5-Port
- SKU:
- Z26S007
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- Easy 30-Day Free Returns
Description
Manufacturer: Moxa
Model: EDS-G205A-4PoE
Condition: Used. Comes in non-original packaging. This switch is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.
Notes: We powered the switch on with 24VDC and tested the ethernet ports for proper communication. No further testing was performed.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Moxa EDS-G205A-4PoE Unmanaged Ethernet Switch
Specifications:
- Manufacturer: Moxa
- Model: EDS-G205A-4PoE
- Description: Unmanaged Ethernet Switch
-
Standards:
- IEEE 802.3af/at for Power-over-Ethernet
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X)
- IEEE 802.3ab for 1000BaseT
- IEEE 802.3z for 1000BaseX
- IEEE 802.3x for Flow Control
- Processing Type: Store and Forward
-
Switch Properties:
- MAC Table Size: 8 K
- Packet Buffer Size: 136 KB
- Jumbo Frame Size: 9.6 KB
-
Interface:
- Fiber Port: 1000BaseSFP slot
- RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed, Full/Half
- duplex mode, and auto MDI/MDI-X connection
- PoE Pinout: V+, V+, V-, V- for Pin 1,2,3,6 (Endspan, MDI Alternative A)
- LED Indicators: P1, P2, 10/100/1000M, PoE
-
Power Requirements:
- Input Voltage: 24/48 VDC, redundant inputs
- Input Current: Max 7.5 A @ 24 VDC (supports up to 4 ports at 30
- watts per PoE port)
- Overload Current Protection: Present
- Connection: 2 removable 2-contact terminal blocks
- Reverse Polarity Protection: Present
