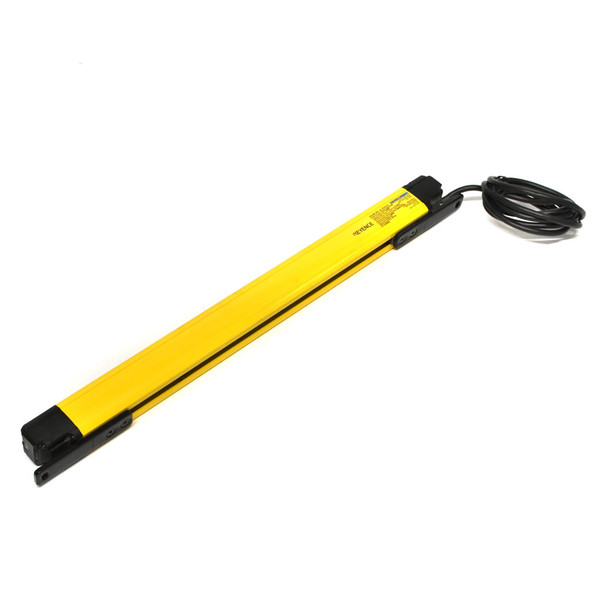

Keyence GL-R24H-R Receiver Safety Light Curtain 24VDC
- SKU:
- Z48S004
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- Easy 30-Day Free Returns
Description
Manufacturer: Keyence
Model: GL-R24H
Condition: Used. Comes in non-original packaging. This light curtain is in used condition with scuffs and scratches from previous use, but nothing that would affect functionality.
Cosmetic appearance may vary slightly from pictured unit(s).
Notes: This light curtain was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Keyence GL-R24H-R Receiver Safety Light Curtain 24VDC
Specifications:
- Manufacturer: Keyence
- Model: GL-R24H-R
- Description: 24-Beam Safety Light Curtain Receiver
- Number of Beams: 24
- Detection Capability: Ø 25 mm
- Total Length: 480 mm
- Detection Height: 460 mm
- Protection Height: 505 mm
- Beam Spacing / Lens Diameter: 20 mm / Ø 5 mm
- Detection Distance: 0.2 – 15 m
- Effective Aperture Angle: ±2.5° (at ≥ 3 m)
- Light Source: Infrared LED (870 nm)
- OSSD Response Time (Wire Sync): ON → OFF = 6.6 ms; OFF → ON = 48.7 ms
- All-Blocked → ON Response Time: ~63.1 ms
- Maximum Load Current on OSSD: 500 mA
- Residual Voltage (ON): ≤ 2.5 V
- OFF-State Voltage: ≤ 2.0 V
- Leakage Current: ≤ 200 µA
- Maximum Capacitive Load: 2.2 µF
- Maximum Wiring Resistance: 2.5 Ω
- Auxiliary Output: Transistor, up to 50 mA
- Error / Muting Lamp Output: Supports 24 V incandescent or LED
- External Input Functions: EDM, Wait, Reset, Muting, Override
- Supply Voltage: 24 V DC ±20%
- Current Consumption: ~72 mA (Receiver), ~57 mA (Transmitter)
- Protection Circuitry: Reverse current, short-circuit, surge protection
- Safety Compliance: IEC 61496-1 (Type 4), SIL 3, PLe
- Ingress Protection: IP65 / IP67
- Operating Temperature: –10 °C to +55 °C
- Storage Temperature: –25 °C to +60 °C
- Humidity Range: 15–85% RH (non-condensing)
- Vibration: 10–55 Hz, 0.7 mm double amplitude
- Shock Resistance: 100 m/s² (~10 g), 16 ms, 1,000 cycles per axis
CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
