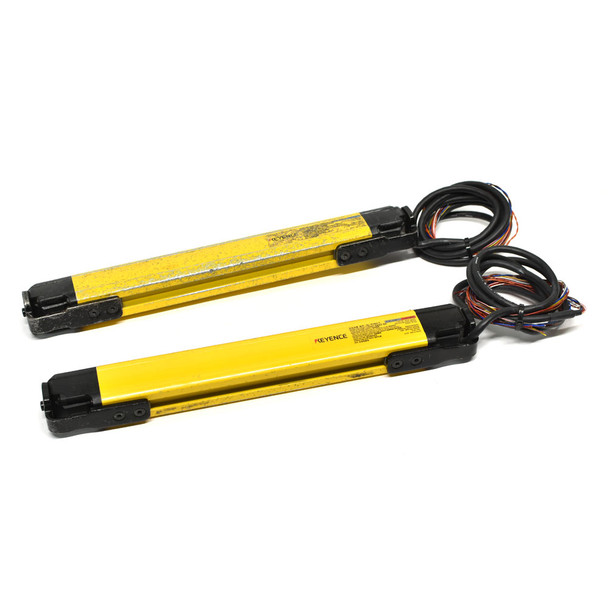

Keyence GL-R16H-R & GL-R16H-T Light Curtain Set 300mm

Manufacturer: Keyence

Model: GL-R16H

Condition: Used. Comes in non-original packaging. This light curtain set is in used  condition with scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.

Notes: This light curtain set was removed from a decommissioned machine and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Keyence GL-R16H-R Light Curtain Receiver 300mm 24VDC
• (1) Keyence GL-R16H-T Light Curtain Transmitter 300mm 24VDC

Specifications:

• Manufacturer: Keyence
• Model: GL-R16H (R = Receiver, T = Transmitter)
• Description: Safety light curtain, hand-protection type, 16 beams
  • Detection Capability: ø25 mm
  • Total Length: 320 mm
  • Number of Beams: 16
  • Detection Height: 300 mm
  • Protection Height: 345 mm
  • Beam Axis Spacing / Lens Diameter: 20 mm / ø5 mm
  • Detecting Distance: 0.2 to 15 m
  • Effective Aperture Angle: ±2.5° (at ≥ 3 m distance)
  • Light Source: Infrared LED (870 nm)
  • Response Time (OSSD) –
  • • Wire synchronization, Channel 0: ON→OFF = 6.6 ms, OFF→ON = 48.7 ms, All blocked→ON = 63.1 ms
  • • Optical synchronization, Channel A or B: ON→OFF = 8.1 ms, OFF→ON = 50.9 ms, All blocked→ON = 69.1 ms
  • Control Output (OSSD): 2 transistor outputs (PNP or NPN, depending on cable type)
  • Max Load Current: 500 mA
  • Residual Voltage (ON): ≤ 2.5 V (with 5 m cable)
  • OFF State Voltage: ≤ 2.0 V (with 5 m cable)
  • Leakage Current: ≤ 200 µA
  • Max Capacitive Load: 2.2 µF
  • Load Wiring Resistance Max: 2.5 Ω
  • Supplemental (Aux) Output: transistor, 50 mA max, residual voltage ≤ 2.5 V
  • Protection: Reverse current protection, short-circuit protection, surge protection
  • Power Supply: 24 V DC ±20%, ripple (P-P) ≤ 10%, Class 2
  • Current Consumption: Transmitter ~50 mA; Receiver ~69 mA
  • Operating Temperature: –10 to +55 °C
  • Storage Temperature: –25 to +60 °C
  • Humidity (Operating): 15 to 85 % RH (no condensation)
  • Enclosure Rating: IP65 / IP67
  • Ambient Light Tolerance: Incandescent ≤ 3,000 lux, Sunlight ≤ 20,000 lux
  • Vibration: 10–55 Hz, double amplitude 0.7 mm
  • Shock: 100 m/s² (10 G), 16 ms, 1,000 times in each axis
  • Materials: Main case aluminum, upper/lower case nylon (GF30%), front cover polycarbonate + SUS304
