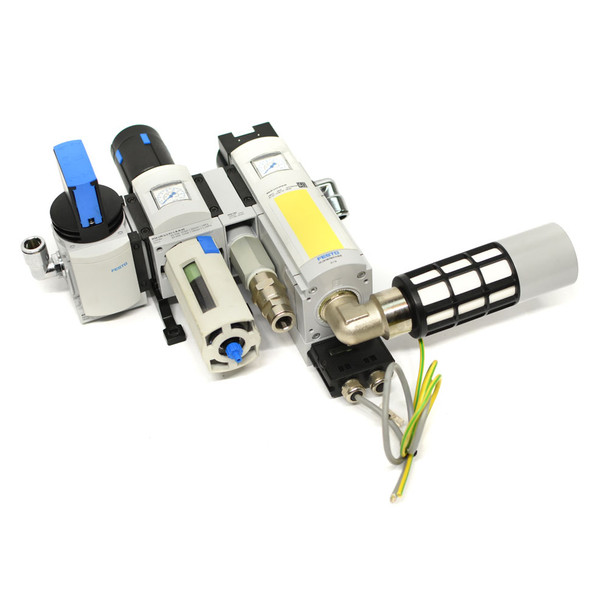

Festo MS6-SV-1/2E-10V24AG Soft Start Valve Assembly

Manufacturer: Festo

Model: MS6-SV-1/2E-10V24AG

Condition: Used. Comes in non-original packaging. This valve system is in good condition with minor scuffs and scratches from previous use, but nothing that would affect functionality.
The photos show the exact item(s) the buyer will receive.

Notes: This valve system was removed from a decommissioned setup that was being removed from service, but has not been tested separately after removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Festo MS6-SV-1/2-E-10V24-AG Soft Start/Quick Exhaust Valve
• (1) Festo MS6-FRZ Distributor Block
• (1) Festo UOS-1 Pneumatic Muffler
• (1) Festo NECA-S1G9-P9-MP1 Multi-Pin Plug Socket
• (1) Festo MS6-LFR-1/2-D7-CRM-AS Filter Regulator
• (1) Festo MS6-EM1-1/2 On/Off Valve

Specifications:

• Manufacturer: Festo
• Model: MS6-SV-1/2-E-10V24-AG
• Part #: 548715
• Description: Soft start/quick exhaust valve
  • Type: Control Valve, Maintained
  • Function: 3/2 Normally Closed
  • Operating Pressure: 51 ~ 145 PSI (3.5 ~ 10 bar)
  • Fluid Type: Air, Inert Gas, Liquid
  • Connection Method: Threaded
  • Mounting Type: Sub-Base Mount
  • Ingress Protection: IP65 - Dust Tight, Water Resistant
  • Operating Temperature: -10°C ~ 50°C
• Manufacturer: Festo
• Model: MS6-FRZ
• Part #: 549337
• Description: Distributor block
  • For Use With/Related Products: Air Preparation
• Manufacturer: Festo
• Model: UOS-1
• Part #: 552252
• Description: Pneumatic muffler
  • Type of seal on screwed plug: without seal
  • Mounting position: Any
  • Structural design: Pneumatic muffler, open
  • Symbol: 00992064
  • Operating pressure: 0 MPa ... 1 MPa
  • Operating pressure: 0 bar ... 10 bar
  • Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
  • Corrosion resistance class (CRC): 2 - Moderate corrosion stress
  • Noise level: 75 dB(A)
  • Pneumatic connection: G1
  • Cushioning insert material: PE
• Manufacturer: Festo
• Model: NECA-S1G9-P9-MP1
• Part #: 548719
• Description: Multi-pin plug socket
  • Type of mounting: With through-hole
  • Electrical connection 1: Socket, Sub-D, 9-pin
  • Electrical connection 2: Screw terminal, 9-pin
  • DC operating voltage range: 21.6 V ... 26.4 V
  • Nominal operating voltage DC: 24 V
  • Current rating at 40° C: 1 A
  • Approved cable diameter: 5 mm ... 10 mm
  • Connection cross section: 0.34 mm² ... 1 mm²
  • Information on port cross section: 0.34–0.5 mm² when using cable end sleeves
• Manufacturer: Festo
• Model: MS6-LFR-1/2-D7-C-R-M-AS
• Part #: 529184
• Description: Filter Regulator
  • Operating Pressure: 11.6 ~ 290 PSI (0.8 ~ 20 bar)
  • Pressure Regulation: 7.3 ~ 174 PSI (0.5 ~ 12 bar)
  • Flow Rate: 1057GPM (4000LPM)
  • Connection Method: G1/2
  • Filtration Level: 5µm
  • Fluid Type: Compressed Air, Inert Gas
  • Operating Temperature: -10°C ~ 60°C
  • Flow Direction: Left to Right
  • Drain Type: Manual
  • Condensation Capacity: 1.29oz (38ml)
• Manufacturer: Festo
• Model: MS6-EM1-1/2
• Part #: 541267
• Description: On/off valve
  • Structural design: Rotary gate valve
  • Actuation type: Manual
  • Exhaust air function: Without flow control option
  • Type of control: Direct
  • Symbol: 00991670
  • Valve function: 3/2, bistable
  • Operating pressure: 0 bar ... 18 bar
  • C value: 30.8 l/sbar
  • b-value: 0.57
  • Standard nominal flow rate: 8700 l/min
  • Pneumatic connections: G1/2
