Description

Manufacturer: Dwyer

Model: 3001

Condition: New Other. Comes in non-original packaging. This gauge is in fair overall cosmetic condition. It appears to have never been mounted, but has minor blemishes from storage. There is some minor corrosion on the back cover screws, and there is some funkiness with the finish by the rim of the gauge and on the mounting ring. There is one spot of brown inside the front of the gauge, and on the clear back cover. The transformer inside has some fuzzy brown stuff. Inside the cover, it smelled slightly musty. We suspect this unit got a little damp in storage.
The photos show the exact item(s) the buyer will receive.

Notes: We blew gently at the ports and verified the needle moves. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

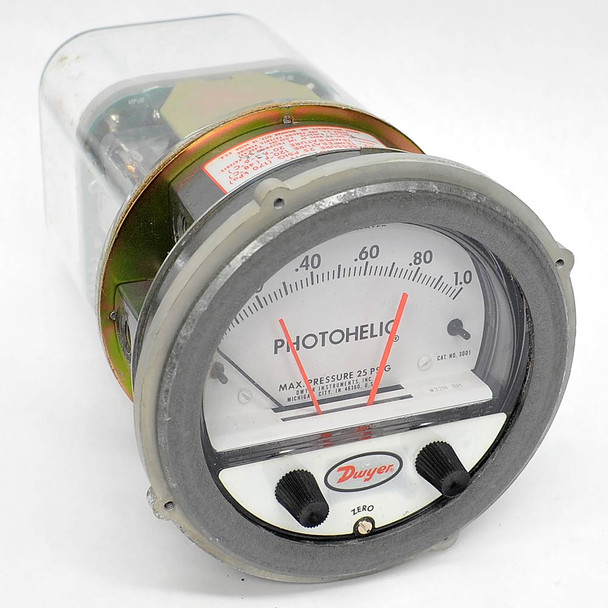

(1) Dwyer 3001 Photohelic Gauge

Specifications:

Manufacturer: Dwyer
Cat.No.: 3001
Photohelic Differential Pressure Gauge
Range: 0 to 1.0 Inches of Water
Photohelic switch/relay outputs on a Magnehelic gauge
Combines analog differential pressure gauge with low/high set-points
Dial size: 4" (5" outside diameter)
Pneumatic connections: 1/8" NPT (female) (hose barbs are included)
Compatible with liquid or gas fluid measurement
Circuit: HH
Each contact has (2) Form C relays (DPDT)
Knobs on face adjust the setpoints
Power supply: 120 VAC, 50/60 Hz, 5 Watts
Contact rating: 10 A, 24 VDC/120 VAC, 6A 240 VAC
Maximum pressure: 25 PSIG (170 kPa)
Maximum temperature: 120 ºF (48 ºC)
Minimum temperature: 20 ºF (-6 ºC)
Relay pack compatible with LED photohelics only
Gauge is not compatible with incandescent style relay packs

Minor corrosion from storage, please see pictures.

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
