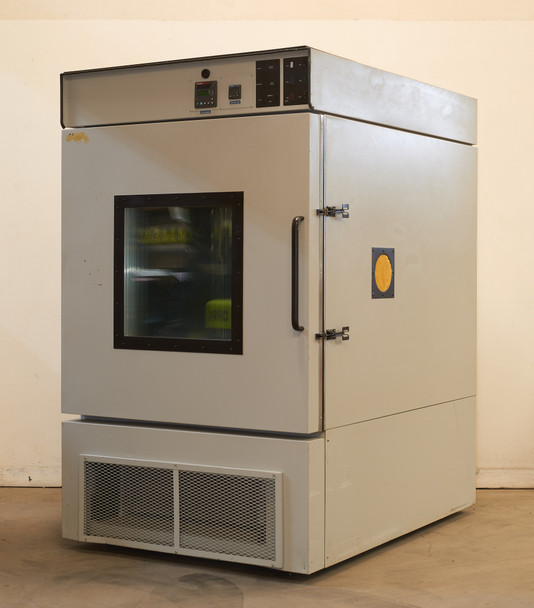

CSZ Cincinnati Sub Zero Z-32-2-2-H/AC Environmental Chamber 240V

Manufacturer: Cincinnati Sub Zero CSZ

Model: Z-32-2-2-H/AC

Condition: Used. This Cincinnati Sub Zero chamber is used and tested.  It makes -73C and features a Watlow F4 controller.  The controller and refrigerants used were retrofitted.
The photos show the exact item(s) the buyer will receive.

Notes: When we acquired this chamber we noted satisfactory refrigeration performance but off-plan wiring errors incurred during the Watlow F4 retrofit prevented correct operation.  A qualified technician revised and clarified the wiring resulting in predictable operation.  The R-404A refrigerant charge was removed and replaced with fresh refrigerant in the correct amount after bubbles were observed in the sight glass.  At the same time the two gauges were replaced with new liquid-filled gauges from Cincinnati Sub Zero since one of the gauges was not indicating correctly.  The low pressure gauge has a manual vent; it was left open to improve accuracy. The Potter & Brumfield relays were replaced with Allen Bradley units as the P&B ones are known to cause trouble.  Two SSRs were added to implement I/O to the Watlow F4.  Other than the changes made to accommodate the F4 the wiring was restored to normal in accordance with the Cincinnati schematic.  One of the compressors was replaced but we could not determine when since there’s only about 1” clearance to the top of the compressor.  After all was said and done the unit was tested again.  The system runs quietly without any odd noises.  At some point a refrigerant retrofit was done to both refrigeration systems.  Power can be 240 or 208V one or three phase depending on connection used.  The chamber must remain under power for one day before running because a crankcase heater prevents slugging the R-404A compressor.  A 4 conductor 8AWG pigtail of about 3’ is included; it is sufficient for three phase operation.  F4 controllers are available on eBay at around $500; this chamber wont leave you in a lurch if the controller dies.  PID autotune was performed at -35C.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

• (1) Cincinnati Sub Zero Environmental Chamber Z-32-2-2-H/AC

Specifications:

• Manufacturer: Cincinnati Sub Zero CSZ
• Model: Z-32-2-2-H/AC
• Date of manufacture: 1990
• Power requirement: 208V 3ph 37A or 208V 1ph 52A; can be connected for 240V at the control transformer.
• Refrigeration: two 2hp reciprocating compressors
• Refrigerants: R-404A, R-508B
• Ultimate temperature: -73C (tested)
• Time to temp at 82F ambient: from 20C to
  • 10.3C in 4 minutes
  • 2.2C in 6 minutes
  • -5.2C in 9 minutes
  • -13.8C in 15 minutes
  • -20C in 19 minutes
  • -36C in 32 minutes
  • -47C in 43 minutes
  • -57.4C in 54 minutes
  • -73C in more than one hour
• Heater: 2.5kW
• Controller connectivity: RS-232C; NO ethernet
• Chamber interior: 38” tall x 38-1/2” deep x 38” high
• Chamber exterior: 99” deep x 48” wide x 78” high
• Chamber penetrations: one 5-1/4” diameter on each side; two total
• Controller: Watlow F4 programmable PID with ramp and soak
• Limit controller: Watlow SD
• High limit: 375F internal switch
• The chamber light works.

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
