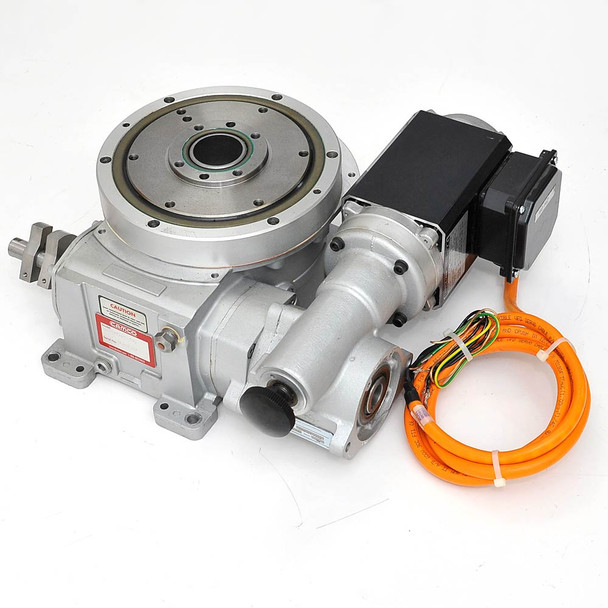

CAMCO 601RDM-6H24 Rotary Indexer 6 Stations 3-phase 230/460V Motor R180 40:1
- SKU:
- Z48D001
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Camco
Model: 601RDM
Condition: Used. Comes in non-original packaging. This indexer is in fair cosmetic condition, with minor scuffs/scratches/residues from prior use. There is minor oxidation and scuffing on the end of the sensor-arm shaft (see picture)
Please NOTE: The vent has been plugged for storage, and you will need to reinstall the vent before using the indexer.
The photos show the exact item(s) the buyer will receive.
Notes: This indexer is in good working condition. We applied power to the motor and the indexer spun quietly, stopping at each station briefly. The right-angle driveshaft and socket outputs from the gearhead and the manual knob all spun continuously as the motor ran. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Camco 601RDM-6H24-330 Rotary Indexer
Specifications:
- Manufacturer: Commercial Cam Co., Inc. (CAMCO, DeStaCo)
- Model: 601RDM-6H24-330
- Rotary Indexer
- Ideal for rotary dial index applications
- 6 positions/60 degrees rotation per motion
- 4-point contact bearing for superior thrust and moment capacity
- Preloaded for no backlash
- High load capacity
- Center through hole diameter: 1.75"
- Can be used with variable speed drive to adjust index time
- Typical application dial diameter: 12" to 36"
- Moving output flange diameter: 6.5"
-
Output load capacity during index:
- Radial 945 lbs
- Thrust/axial: 2260 lbs
-
Reducer gearhead manufacturer: Emerson Industrial Control (Camco-Ferguson)
- Type: R180
- Ratio: 40:1
- Worm shaft handwheel for manual rotation/indexing
- Hollow shaft could be used for accessory mounting
- Dual cams for position sensing (sensors NOT included)
-
Motor: Laipple/KEB model M63p4
- 3phase induction motor type B14
- Speed: 1630 RPM
- Power: 230/460V 60Hz 1.06/0.55A
- Power: 220 Watts
- Duty rating: S3 30% (off most of the time)
- IP65 protection
