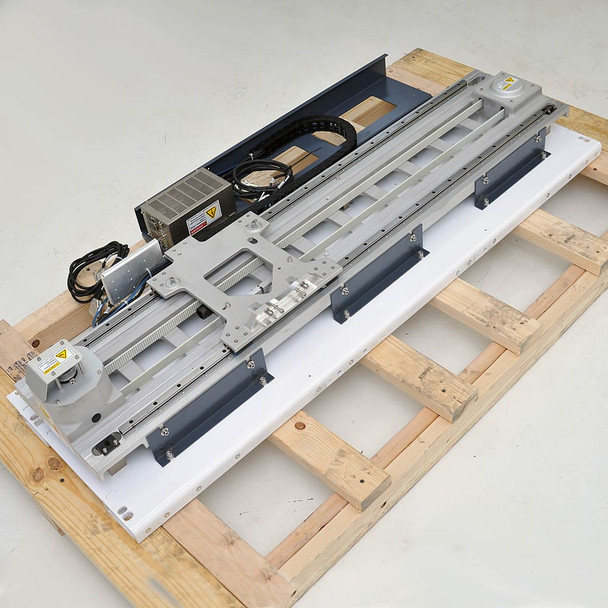

Brooks CHE 171758 1m Linear Motion Translation Stage from JET EFEM Wafer Handler
- SKU:
- Y03D008
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Brooks
Model: 171758
Condition: Used. This stage is in Good cosmetic condition with only minor blemishes (scuffs/scratches) from prior use. The photos show the exact item(s) the buyer will receive.
Notes: This stage was removed from a decommissioned Brooks JET 241100-0001 EFEM. It can be pushed with light hand pressure from end to end of travel. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Brooks 171758 Linear Motion Module
Specifications:
- Manufacturer: Brooks Automation
- P/N: 171758
- MFG #: CHE
- Linear motion component
- Maximum possible travel: 101.5 cm
- Overall dimensions approximately 62" x 26" x 12"
- (2) linear motion guide ways, IKO LWE15, 137 cm long
- (4) recirculating ball bearing blocks, IKO MES15
- Belt-driven
- Servo motor is hidden, possibly built-into one end piece
- Heavy aluminum chassis for linear motion parts
- Heavy steel chassis for the aluminum chassis
- stage is about 36 x32 cm including protrusions
- Rail spacing: 25.4 cm
- Thick rubber bumpers both ends of travel
- Also marked: M-Phase S:180
- Drive: Servotronix PRD-0057EXTz-03, Brooks PN 169237
- Motor encoder: Sick SRM50-FFA0-S21 Motorfeedback
- Electronics box: Brooks 148701
CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
