Description

Manufacturer: Beckhoff

Model: BK5200

Condition: Used. Comes in non-original packaging. This bus coupler and modules are in good cosmetic condition with some minor scuffs and scratches from normal use, but nothing too major or anything that would affect functionality.

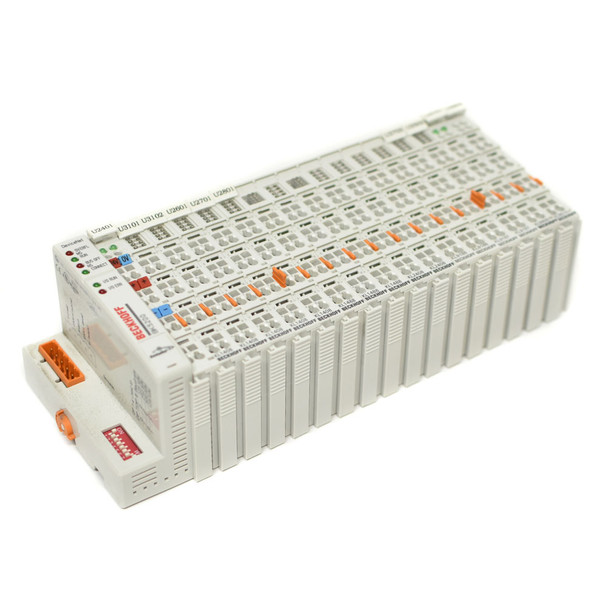

The photos show the exact item(s) the buyer will receive.

Notes: This bus coupler and module setup was removed from a decommissioned PLC setup and has not been tested since its removal.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

(1) Beckhoff BK5200 Bus Coupler
(5) Beckhoff KL1408 Digital Input Module
(3) Beckhoff KL1488 Digital Input Module
(2) Beckhoff KL2408 Digital Output Module
(2) Beckhoff KL9186 Potential Distribution Terminal
(2) Beckhoff KL9187 Potential Distribution Terminal
(1) Beckhoff KL9400 Power Supply Module
(1) Beckoff KL9010 End Terminal

Specifications:

Manufacturer: Beckhoff
Model: BK5200
Description: Bus Coupler
- Number of Bus Terminals: 64
- Max. number of bytes fieldbus: 512 bytes input and 512 bytes output
- Digital peripheral signals: 512 inputs/outputs
- Analog peripheral signals: 256 inputs/outputs
- Configuration: via KS2000 or the controller
- Data transfer rates: via Dip switch
Manufacturer: Beckhoff
Model: KL1408
Description: 8-channel digital input
- Connection technology: 1-wire
- Specification: EN 61131-2, type 1/3
- Number of inputs: 8
- Nominal voltage: 24 V DC (-15%/+20%)
- “0” signal voltage: -3…+5 V (EN 61131-2, type 1/3)
- “1” signal voltage: 11…30 V (EN 61131-2, type 3)
- Input filter: typ. 3.0 ms
- Input current typ.3 mA (EN 61131-2, type 3)
- Current consumption K-bus: typ 5 mA
- Current consumption power contacts: typ 2 mA + load
- Electrical isolation: 500 V (K-bus/field potential)
- Bit width in the process image: 8 inputs
Manufacturer: Beckhoff
Model: KL1488
Description: 24V Digital input terminal
- Connection technology: 1-wire
- Specification: ground switching
- Number of inputs: 8
- Nominal voltage: 24 V DC (-15%/+20%)
- “0” signal voltage: 18…30 V
- “1” signal voltage: 0…7 V
- Input filter: typ. 3.0 ms
- Input current: typ. 3 mA
- Current consumption K-bus: typ. 5 mA
- Current consumption power contacts: typ. 2 mA + load
- Electrical isolation: 500 V (K-bus/field potential)
Manufacturer: Beckhoff
Model: KL2408
Description: 8-channel digital output
- Connection technology: 1-wire
- Number of outputs: 8
- Nominal voltage: 24 V DC (-15%/+20%)
- Load type: ohmic, inductive, lamp load
- Max. output current: 0.5 A (short-circuit proof) per channel
- Short-circuit current: < 2 A
- Breaking energy: < 150 mJ/channel
- Reverse voltage protection: yes
- Electrical isolation: 500 V (K-bus/field potential)
- Current consumption power contacts: typ. 60 mA + load
- Current consumption K-bus: typ. 18 mA
- Bit width in the process image: 8 outputs
Manufacturer: Beckhoff
Model: KL9186
Description: Potential Distribution Bus Terminals
- Nominal Voltage: =/< 60 VDC
- Current Load: =/<10 Amps
- Electrically Isolated
- 8 x 24V Connection
- Temperature Rating: -25 to 60 °C
- Manufacturer: Beckhoff
- Model: KL9187
- Description: Potential distribution terminal
- Provides 8 terminal points with a 0V power supply potential voltage
- Enables voltage to be picked up without further terminal blocks or wiring
- Current load: ≤ 10A
- K-bus looped through
Manufacturer: Beckhoff
Model: KL9400
Description: Power Supply Module
- Input voltage 24 V DC (-15 %/+20 %)
- Output voltage 5 V DC
- Output current 2 A for K-bus supply
- Power contacts max. 24 V DC/max 10 A
- Short-circuit proof yes
Manufacturer: Beckhoff
Model: KL9010
Description: End Terminal
- K-bus, looped through: –/yes
- Special features: end terminal for bus communication

CDN Systems LLC, DBA Doug Deals, is not an authorized distributor or affiliated with the manufacturer of this product. Original manufacturer's warranty does not apply.
