B&R Automation Berger Lahr 3-Axis 1.4m Linear Stage XYZ CNC Robot Router Modules
- SKU:
- Z33D001
- Shipping:
- Calculated at Checkout
- Condition:
- Used
- Warranty & Returns:
- 30-Day Guarantee
Description
Manufacturer: Berger Lahr
Model: DOES NOT APPLY
Condition: Used. This item is in fair cosmetic condition with lots of scuffs/scratches/dust/residues from prior use. The shorter horizontal axis has its steel protector strip busted out of its bracket on one end (see pohoto 8). Please NOTE: There is no overall model/dataplate on this lot. One of the linear axes has a Berger Lahr brand mark, and the linear modules look like others we have seen from this brand, so we are confident they are Berger Lahr, but have no idea of the model number!
The photos show the exact item(s) the buyer will receive.
Notes: The long axis can be pushed with smooth resistance to moderate hand pressure, which moves both axes together. The shorter axis can be pushed with some cogging resistance, also with moderate hand pressure. The Z axis cannot be moved with hand pressure due to the brake. No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Berger Lahr 3-axis Router Carriage
Specifications:
- Manufacturer: Berger Lahr
- Linear actuators in 3 axes

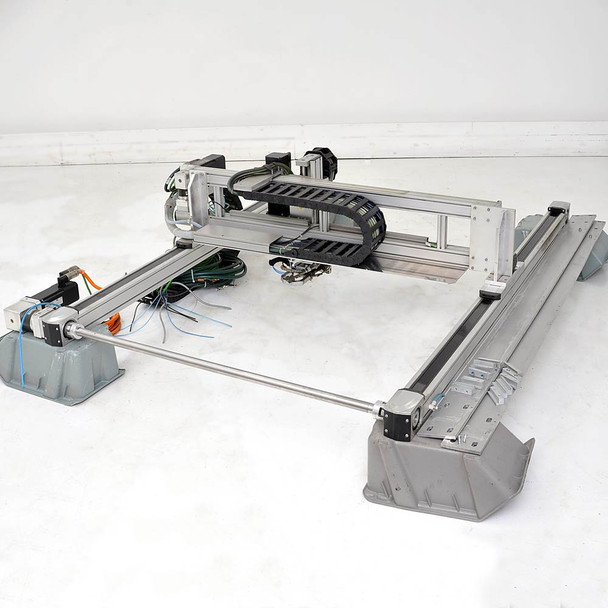

- XYZ stage with mount for a router or 3D printer hot-end
- Set up as cartesian robot
- Estimated travel: 140 x 84 x 20 cm
- Approximate overall dimensions as shown: 202 x 137 x 42 cm
- With z-axis holding brake
- Pushbutton brake release
- Mount for tooling: 74mm inside diameter hole on aluminum bracket
- Tooling mount can tilted up to 7º with pneumatic actuator
- Aluminum linear module construction
- Driveshaft joins long linear modules
- Flexible couplers on driveshaft
- Aluminum mounting plates with mounting hardware for long modules are included
-
Motors: B&R Automation 8LS-series 3-phase synchronous motors
-
(2) Model 8LSA35.E2030D000-0
- Nominal voltage: 400 V
- Nominal current: 1.4 A
- Nominal torque: 2.1 Nm
- Nominal speed: 3000 RPM
- IP64
- Class F
- (1) Model 8LSA35.E2030D200-0 (as above, with 234VDC holding brake)
-
(2) Model 8LSA35.E2030D000-0
-
Gearboxes: Neugart WPLE series
- Economy right angle gears
- Ratio: 5:1
- One is WPLE80, another looks like WPLE60, the other we can't read
