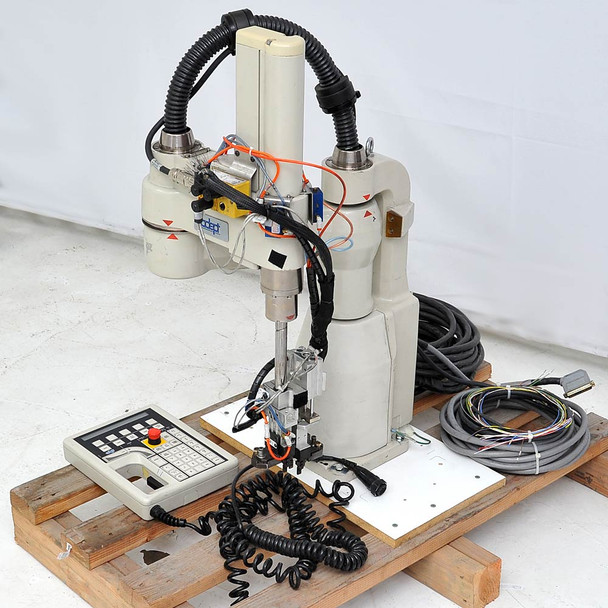

Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000

SKU:
Z06D006
Shipping:
Calculated at Checkout
Condition:
Used
Warranty & Returns:
30-Day Guarantee
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
  • Adept 550A Tabletop SCARA Robot Arm with Control Teach Pendant 10332-11000
$999.99

Description

Manufacturer: Adept

Model: 550A

Condition: Used. Comes in non-original packaging. This arm is in fair cosmetic condition, with scuffs/scratches/residues from prior use.  The cable for the pendant is stretched out, and the strain relief on its connector is partly broken.

Please NOTE: This is not a complete system.  You will need additional equipment, including a controller, wiring, and interlocks to go with this.
The photos show the exact item(s) the buyer will receive.

Notes: This arm was removed from a decommissioned machine and we were not able to test it under power.  All axes move easily with moderate hand pressure.  No other testing was done.
No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

  • (1) Adept 550A Robot Arm
  • (1) Adept 10332-11000 Manual Control III Operator Pendant

Specifications:

  • Manufacturer: Adept
  • Model: 550A
  • Table-Top Robot
  • SCARA Style Robot Arm
  • Maximum reach: 550 mm (minimum reach 194 mm)
  • Joint 3, Z axis vertical stroke: 200 mm
  • Joint rotation:
    • Joint 1: ±100º
    • Joint 2: ±140°
    • Joint 4: ±360°
  • Maximum payload including tooling: 5.5 kg
  • Joint 3 downward minimum force without payload: 12.1 kg
  • Cycle time: 0.8 seconds
  • Joint resolution:
    • Joint 1 0.0008° per encoder count
    • Joint 2 0.0012° per encoder count
    • Joint 3 (vertical Z) 0.0022 mm per encoder count
    • Joint 4 (tool rotation) 0.0012° per encoder count
  • Repeatability (at constant temperature)
    • X, Y plane ± 0.025 mm
    • Joint 3 (vertical Z) ±0.03 mm
    • Joint 4 (rotational) ±0.05°
  • Maximum joint speed:
    • Joint 1 270°/sec
    • Joint 2 430°/sec
    • Joint 3 1000 mm/sec
    • Joint 4 480°/sec
  • Requires PA-4 amplifiers for drive and system controller (not included)
  • Pendant cable: 10132-10080 with round connector
  • End effector: dual pneumatic grippers, one with a pneumatic up/down cylinder
