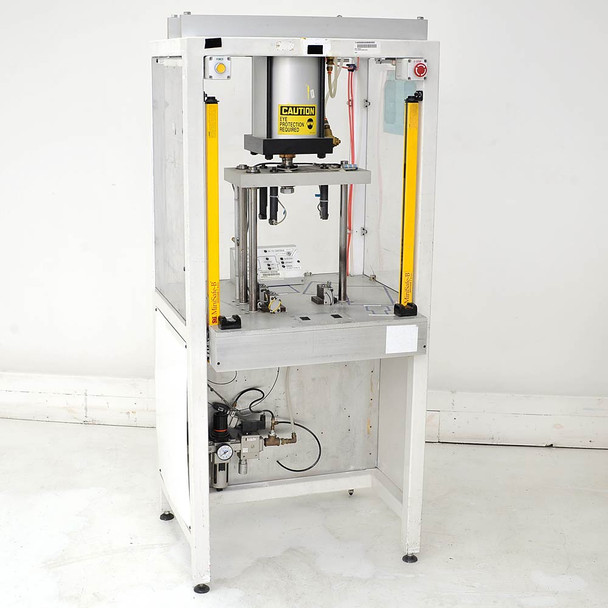

6 Ton Pneumatic Press Parker 8"Bore/Stroke 250PSI Cylinder+Safety Curtains-Parts
- SKU:
- Z37D011
- Shipping:
- Calculated at Checkout
- Condition:
- For Parts or Not Working
- Warranty & Returns:
- Final Sale – No Returns
Description
Manufacturer: Unbranded
Model: DOES NOT APPLY
Condition: For Parts or Not Working. This press is in fair cosmetic condition. From a few feet away it looks nice, but up close you will note the paint and working deck have lots of scuffs/scratches. There are lots of small spots of adhesive label residue. A few screws are missing from the cover panels and one of the plexiglas panels is cracked. A few cover screw brackets are broken. A couple of wires are disconnected in the electronics area. One foot pad is missing. A cover panel on the back is missing, and the operator for the main disconnect switch is missing. A pressure gauge has a missing crystal. Sorry, there is no dataplate or overall make/model information on this unit!
The photos show the exact item(s) the buyer will receive.
Notes: This press is in PARTIAL working condition. We were able to verify the cylinder will raise and lower, the safety light curtains work, the finger-presence operator switches work, the e-stop works, and the power button works. The logic controller is looking for a dozen different conditions, and we were only able to satisfy about half of them. The previous owner had a specific fixture and parts they would insert, and we don't have that, so the PLC won't cycle the ram as normal by pressing the buttons. By applying air pressure manually to the red hoses that pilot the main cylinder valve, we were able to operate the cylinder manually. No other testing was done.
Please NOTE: This press is NOT 100% ready to work. You will need to sort the control logic or do something different with the valves, to make it run. Also note they were probably using this at 80 PSI, so you may need to do some plumbing revision for 250 PSI.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) 6-Ton 250 PSI Air Press
Specifications:
- Pneumatic press
-
Theoretical maximum force:
- 12,568 lbf (6 Tons) @ 250 PSI
- 4,022 lbf (2 tons) @ 80 PSI
- 1,257 lbf (1/2 ton-ish) @ 25 PSI
- Stroke: 7" as configured
- Main press cylinder bore: 8" diameter
- (3) Smaller lifting cylinders under the table
- STI MiniSafe-B safety light curtain with LCC_DN controller
- Allen-Bradley SLC 500 Programmable Controller 1747-L40A with DC-Sink inputs and Relay outputs
- Dual-hand anti-tiedown operator switches
- Up and Down proximity switches
- Banner fiber-optic switches
- Emergency Stop button
- Power button
- Area between guide rods: 11" wide (some wires and fixtures intrude as shown)
- Opening between light curtains: 22-1/2" wide
- Pressing plate: 16" x 8" x 1.5" aluminum
- (3) 1" guide rods with bearings
- Overall dimensions, approximate: 30"W x 28"D x 69"H
- Power: 115V 60Hz plus compressed air
-
Press cylinder: Parker model 08.00 CHB2MAU19AC 8.00
- 2MA-series tie rod cylinder
- Envelope pressure: 250 PSI air
- 8" bore
- 8" stroke
- Rod diameter: 1-3/8"
- C cushion head, Cushion cap
- HB cap square flange mounting style
- NPTF ports
- UNF piston rod thread type
