Eltee Pulsitron Precision EDM Complete System EP30 TR20 with Hydraulic Unit

$4,999.99
SKU:
V52D007
Current Stock:
1
Quantity:

Product Description

Eltee Pulsitron Precision EDM Complete System EP30 TR20 with Hydraulic Unit

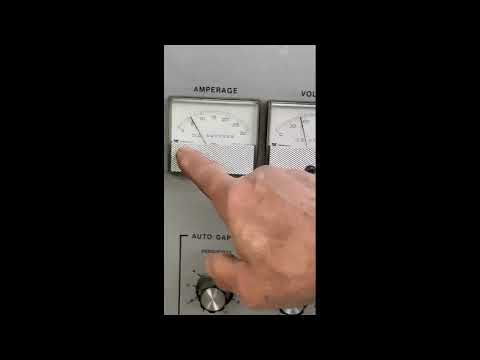

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Manufacturer: Eltee Pulsitron Precision EDM

Model: TR20

Condition: Used. This system is in fair cosmetic condition with lots of scuffs/scratches and residues from prior use. When we got it from the prior user, there was oil on top of the base around the machine itself, so there may be a minor leak in the hydraulics but we are not sure. One of the big canon plugs had its shell fall apart as we were de-installing this, but they said it's not a problem as far as function goes, and the shell parts are included in this lot The photos show the exact item(s) the buyer will receive.

Notes: This system is in good working condition. Please see the attached video of this system working in the prior location immediately before we removed it. No other testing was done. No manuals, cords/cables, or additional items are included if not listed or shown.

Included:

  • (1) Eltee TR20 EDM machine
  • (1) Eltee EP30 Power supply
  • (3) Bins of accessories as shown
  • (1) Instruction Manual

Specifications:

  • Manufacturer: Eltee Pulsitron
  • EDM: TR20
  • Quill travel: 5"
  • Column adjustment: 8"
  • Throat distance: 10.5"
  • X-Y table travel: 8" x 6"
  • Work tank area: 12" x 20"
  • Work tank height: 9"
  • Work table positioning: 0.0001"
  • Max. table load: 200lbs.
  • Magnetic workholding table: Magnetool SP-510-37 11620
  • Power source: EP30
  • Input: 230/460V 3phase 60Hz 6kVA
  • Maximum current: 30 Amps

Removed from working service, watch our video!

30 Day Guarantee

  • Guaranteed to be as described
  • Can be returned for flaws or malfunctions that were not disclosed
  • See complete terms
